BaffleCraft Documentation

The BaffleCraft interface is organized into logical modules, allowing for a seamless transition from global dimensions to refined structural details. Each parameter is mathematically linked to ensure geometric integrity while maintaining maximum artistic freedom. Everything is controlled from the Geometry Nodes modifier panel.

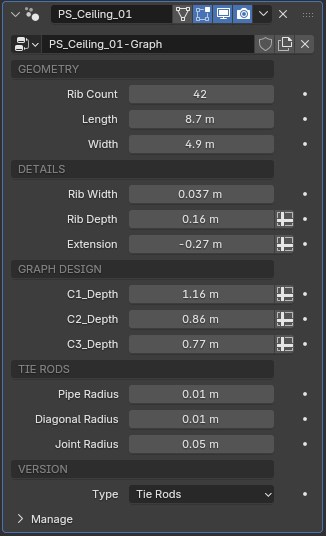

Modifier panel

1. Geometry: global footprint

Rib Count Determines the total number of lamellas, controlling the rhythmic density of the installation
Length / Width Defines the overall X and Y boundaries of the ceiling system

2. Details: lamella morphology

Rib Width Sets the physical thickness of each individual baffle
Rib Depth Establishes the base vertical dimension (height) of the profiles
Extension Controls longitudinal overlap for side-by-side structural joining between segments

3. Graph design: parametric modulation

C1_Height - C3_Height These handles act as the primary drivers for the system's Graph Mapping. They let you define the undulation and profile variance across the ceiling, creating either organic waves or precise architectural gradients

4. Tie rods: structural components

Pipe Radius Controls the thickness of the primary horizontal support members
Diagonal Radius Sets the radius of the diagonal bracing, essential for a realistic structural representation
Joint Radius Adjusts the scale of the spherical connection nodes where rods and pipes intersect

5. Version: system logic

Type A switch that lets you swap between different construction methodologies (Tie Rods) without losing your base geometric settings

Mastering the Graph Mapper

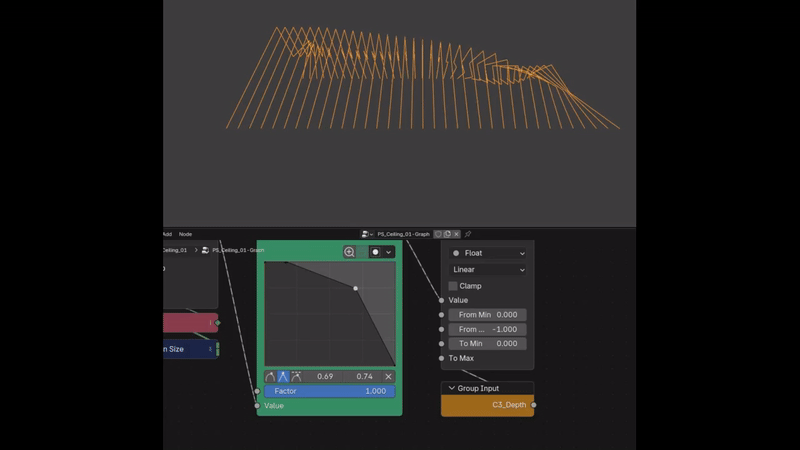

To shape your ceiling structure, simply adjust the X and Y positions of points within the Graph Mapper (Float Curve nodes in the Geometry Nodes editor) to directly redefine the coordinates of the underlying geometry curves. For full 3D spatial control, the system uses a dedicated pair of graphs for each of the three primary control curves: one governs the vertical height, the other manages the positional depth within the ceiling plenum. This dual-graph approach lets you sculpt complex, three-dimensional undulations with absolute mathematical precision.
