New: Bevel Node 3.0: completely overhauled to be MUCH faster (up to 100 times faster!), and now supports ALL the scenarios that used to break the old bevel node, such as nonplanar faces, etc.

A robust mesh bevel Node for Blender versions 4.1 and up. Note: Bevel Node v3.0 works only with Blender 4.5 and up.

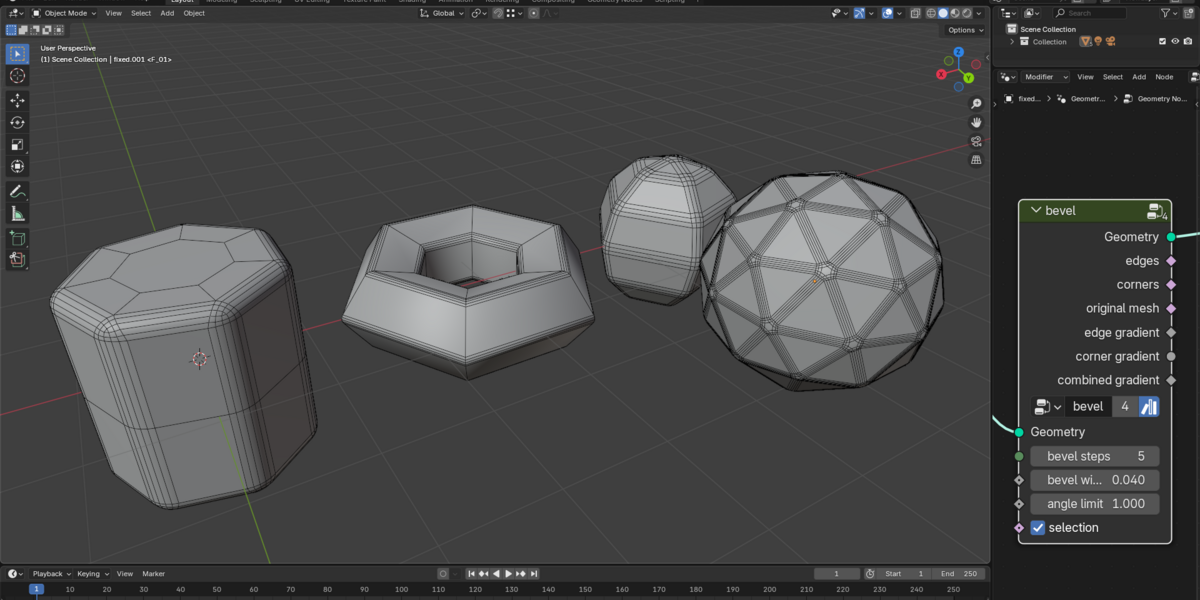

Features (see cover video for demonstration):

• Bevel steps

• Support for variable bevel width per edge.

• Support for angle limit

• Support for selection (Note: in the video, selecting nothing will default to selecting everything. This behavior has been changed. If you want to select everything just check the box).

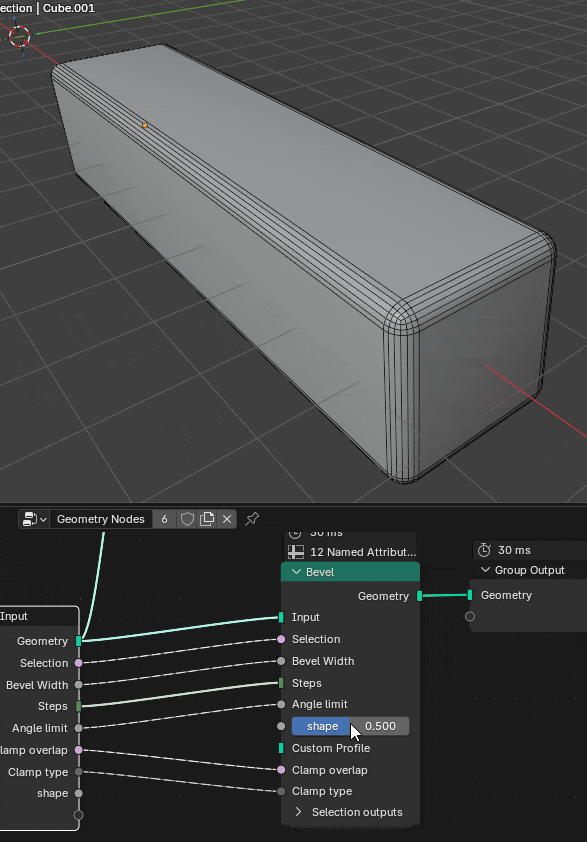

• Support for bevel shape:

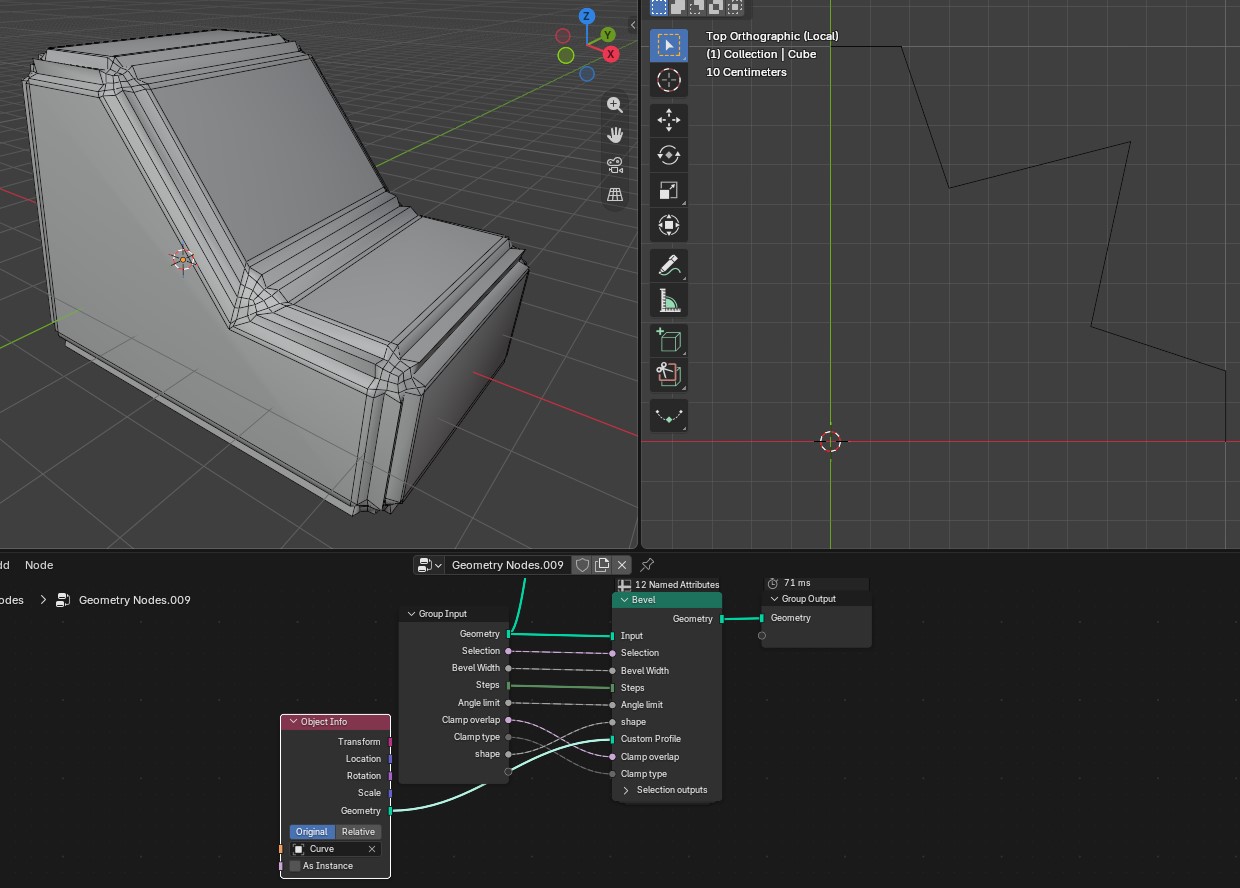

• Support for custom profiles (needs to go from X0,Y1 to X1,Y0).

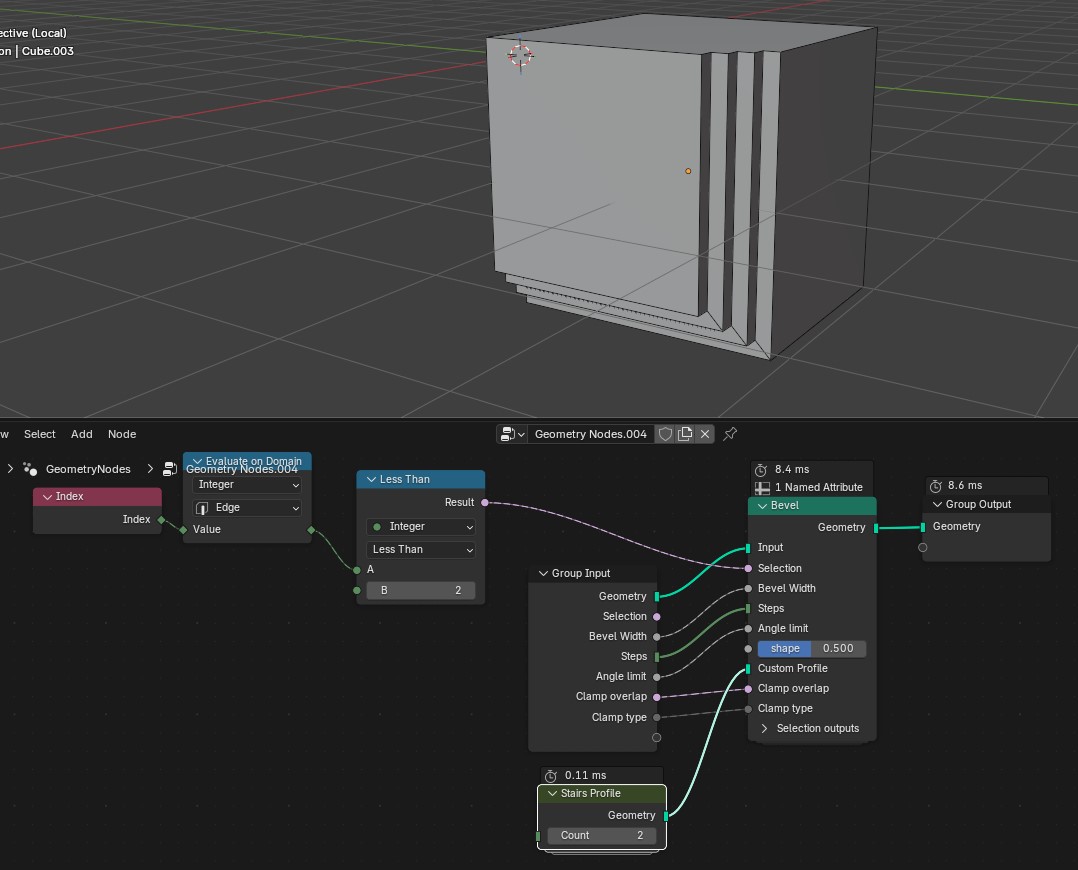

You also get a bonus "Stairs" profile asset node for easy stepped bevels:

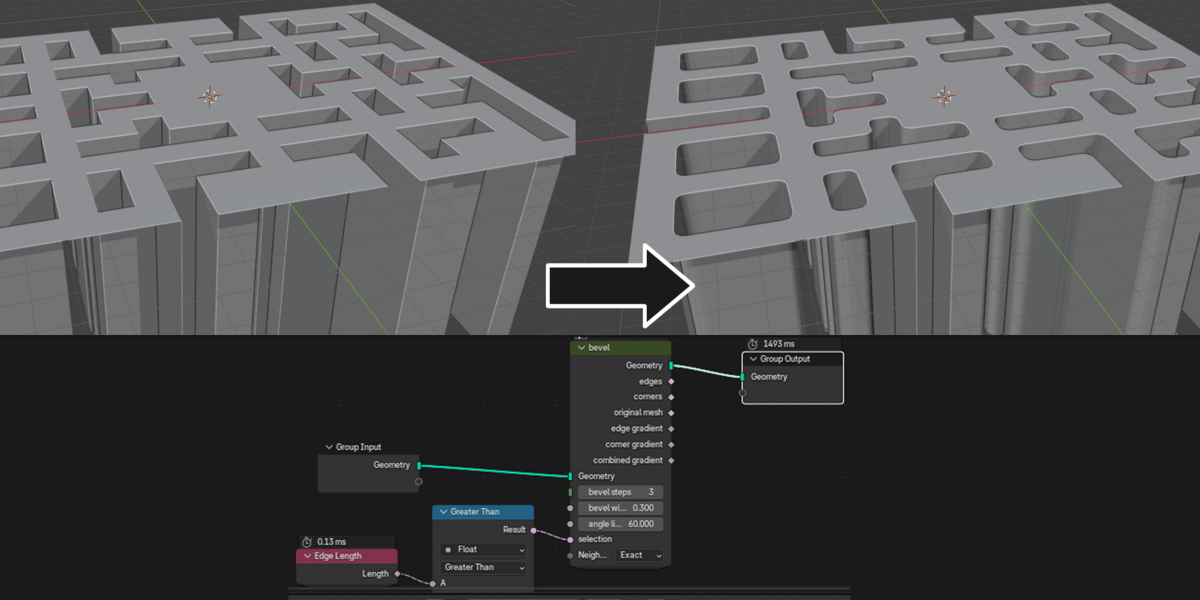

• New: Support for clamp overlap to prevent a too high bevel width from causing intersections. There is also a brand new, never-seen-before "per vertex" mode, which will clamp each edge according to it's own limits, allowing the remaining edges to continue beveling and permitting much wider bevel widths without overlaps:

• Also outputs separate selections for the beveled edges, corners, and original mesh (see cover video). New: also outputs gradients for edges, corners, and a combined gradient useful for effects like edge wear.
