To see the older changelog, scroll down to the bottom.
Documentation will be updated for Mocap Pro V2 by Sunday November 22nd.
How to use Mocap Pro?
First, you must install the data.
Click the "Check Mocap System, if it says that the data has been fetched successfully you are good to go.
If not then go through Data Setup, the data will be installed in a matter of seconds.

Troubleshooting Installation
On Windows, make sure to have write access on the folder where you installed Blender.
If Blender has been installed on disk C, the data may not install because of access being denied.
2 solutions:
1 - Uninstall Blender from disk C:/ and reinstall it on disk D:/, then go through Data Setup as shown above.
2 - Keep your installation on disk C:/, but in that case the data will have to be manually copied into the blender-5.x.x-windows-x64\5.x\python\lib\site-packages folder.
To do that, open the blenquick_mocap_pro_x.x.x_windows.zip with an archive extractor like Winrar or 7Zip.
Once inside open the blenquick_mocap_pro folder, you will see a folder called "data".

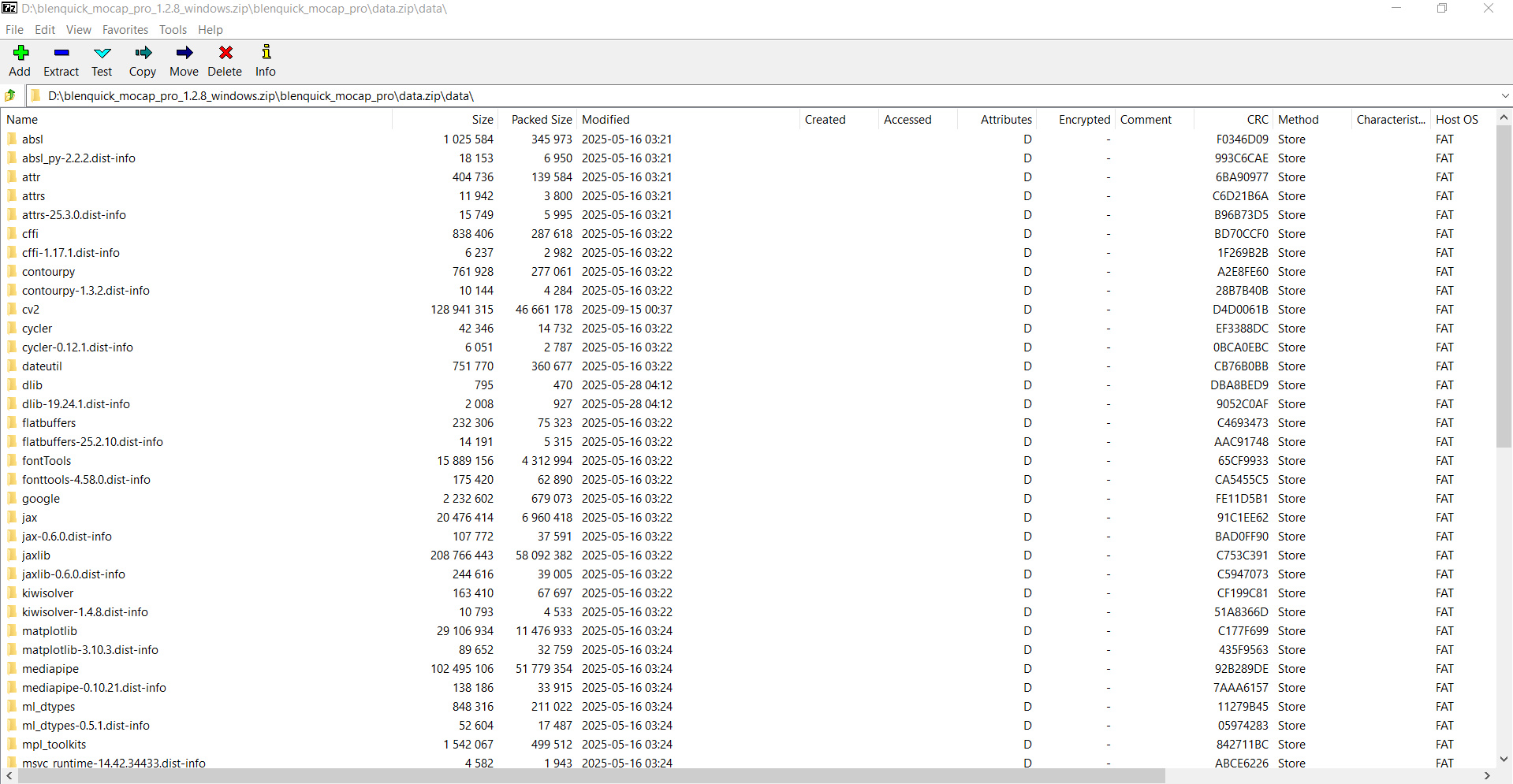

Copy the modules that are inside that "data" folder into blender-5.x.x-windows-x64\5.x\python\lib\site-packages (don't copy the folder in itself, only copy its contents - see below screenshot).

On Linux, you may get a small error message about "self" after installing the data, it's a bug from Blender but it has no effect on the addon so you can safely disregard it.
Now let's motion capture!
- Go to the N-Panel > BMP

- Insert the path
- Configure the settings and set whether the video/image source is a facial, body or fingers motion. If it's an image then check "Is Image"
- Click "Motion Capture!", done!
Notes:
- If the results are not accurate, try changing "Model Accuracy", "Source Tracking Accuracy" or "Source Detection Accuracy"
- Change the "Z Offset Exaggeration" value if the depth is inaccurate

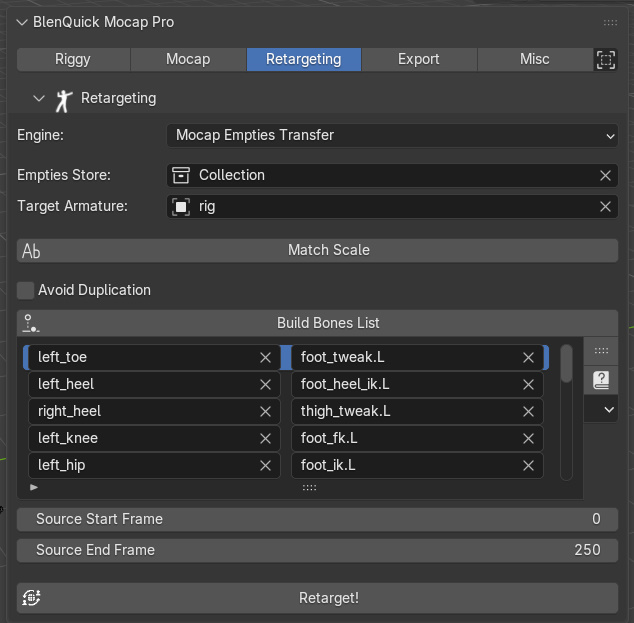

Retargeting
- From the retargeting panel, select which retargeting engine you want to use.

- Set the source armature and the target armature.
- Click on "Build Bones List".
- The bones list will appear on the screen, before to close it check that the bones names to make sure that they are the same on the left side and the right side, otherwise it won't work.
- Click on "Retarget".
Done;)

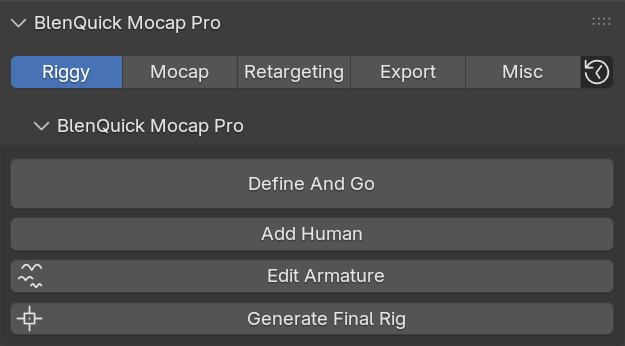

How To Rig My Character?
- Choose which auto-rigger you want to rig with

- Click on Add Human button first (otherwise it won't work)
- Select your character meshes and then define them
- If you selected BlenQuick Auto-Rigger, you can choose between Snappy or Legacy markers setup
- If you selected Mocap Pro, just click on "Define And Go" and the model will deploy the markers automatically
- You can setup the facial if you wish
- Now press "Detect!", done!
Need More Help?
Contact us here on Superhivemarket, or on our Discord Server.
Youtube Channel (Demos & Tutos).
Happy Blending!
