🔶 What is R2-IRON KING?
R2-IRON KING is a Blender add-on designed to automate the creation of steel truss frameworks, roof structures, and metal sheet covers typically used in temporary sheds, site shelters, workshops, and pre-engineered structures. The generated models follow real-world proportions, allowing you to use them for concept design, construction visualization, technical references, or even animation.
🧩 Key Features
🔹 Multiple Truss Types Included
Choose from popular shed truss styles:

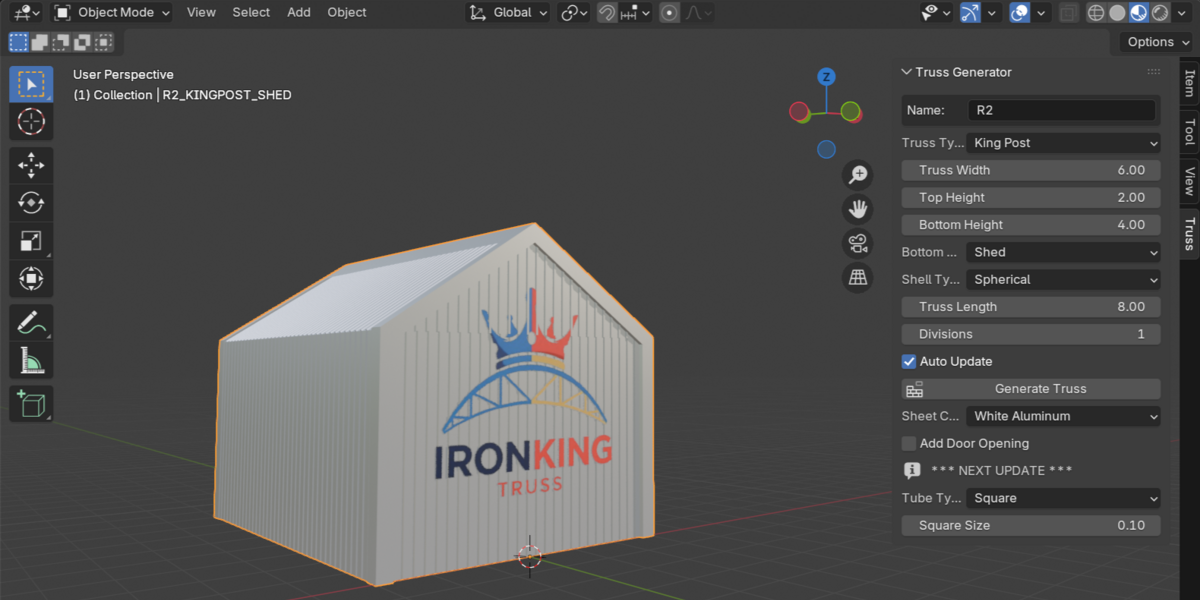

King Post
Mono Truss

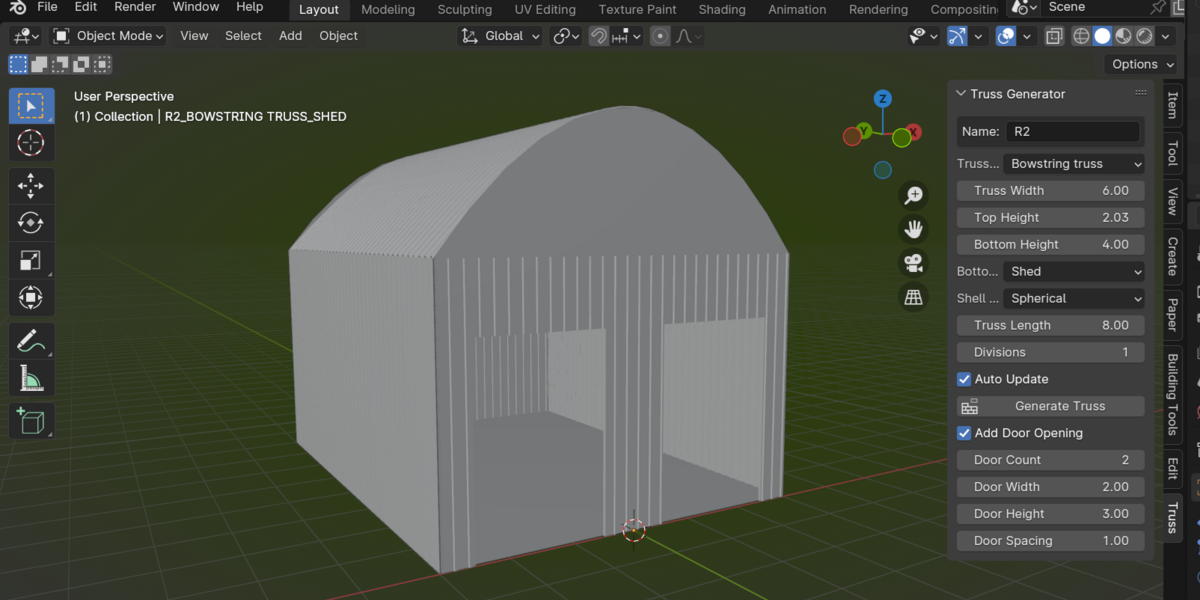

Bowstring Truss

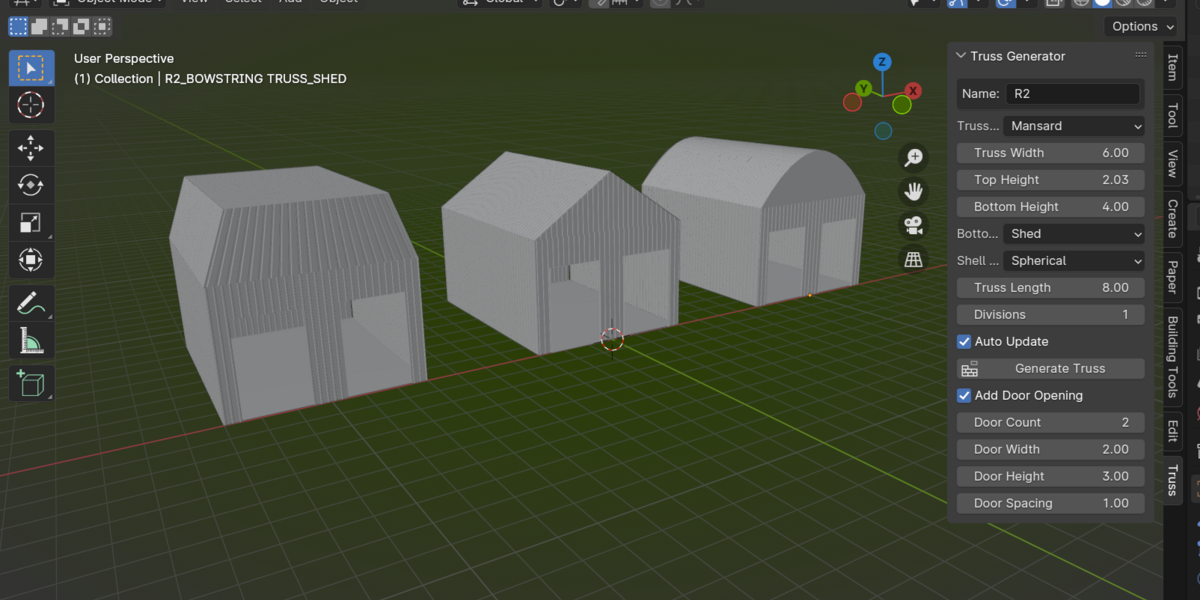

Mansard Truss
Dome Structure
More truss variations are planned for future updates.
🔹 Fully Customizable Geometry

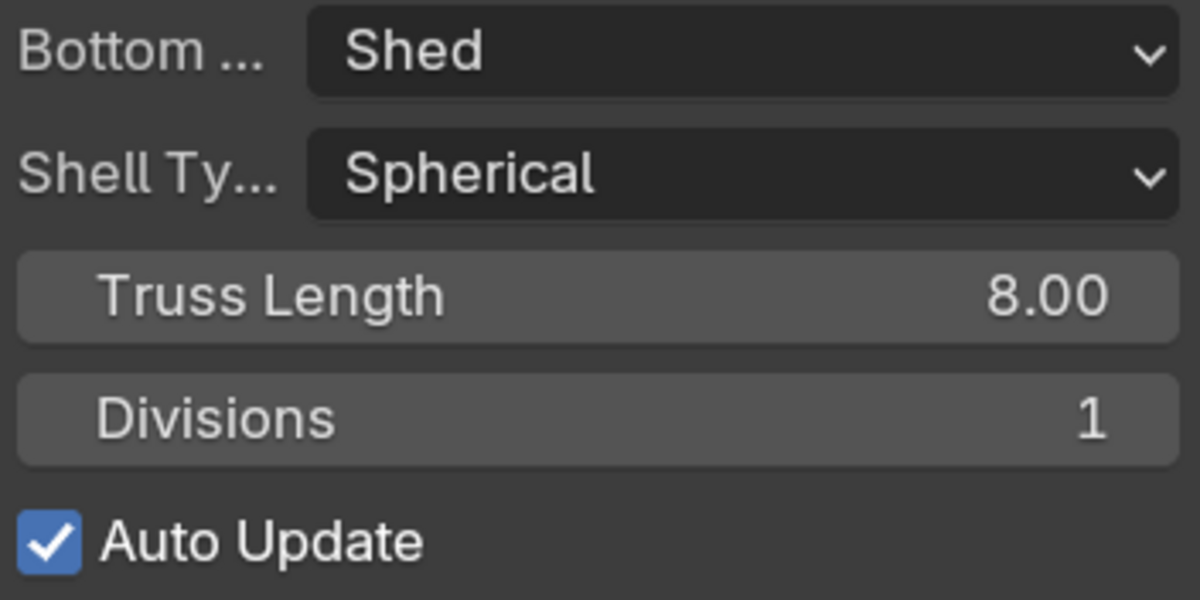

You have control over:
Span (Width)
Height
Roof Slope Angles
Number of Divisions (Segments)
Truss Depth (Length of Shed)
Sheet Profile Options (Trapezoidal)
Fine-tune every part of the structure to suit your scene or project requirements.
🔹 Integrated Metal Sheet Generator
Simulate realistic trapezoidal profiled metal sheets for roofing. Options include:
Profile types
Realistic extrusions and panel width
Flat mesh and wireframe versions
🔹 Auto Wall & Side Panel Generation
Automatically create:
Front and back vertical wall panels
Side faces
End caps
This helps visualize the complete envelope of the shed.

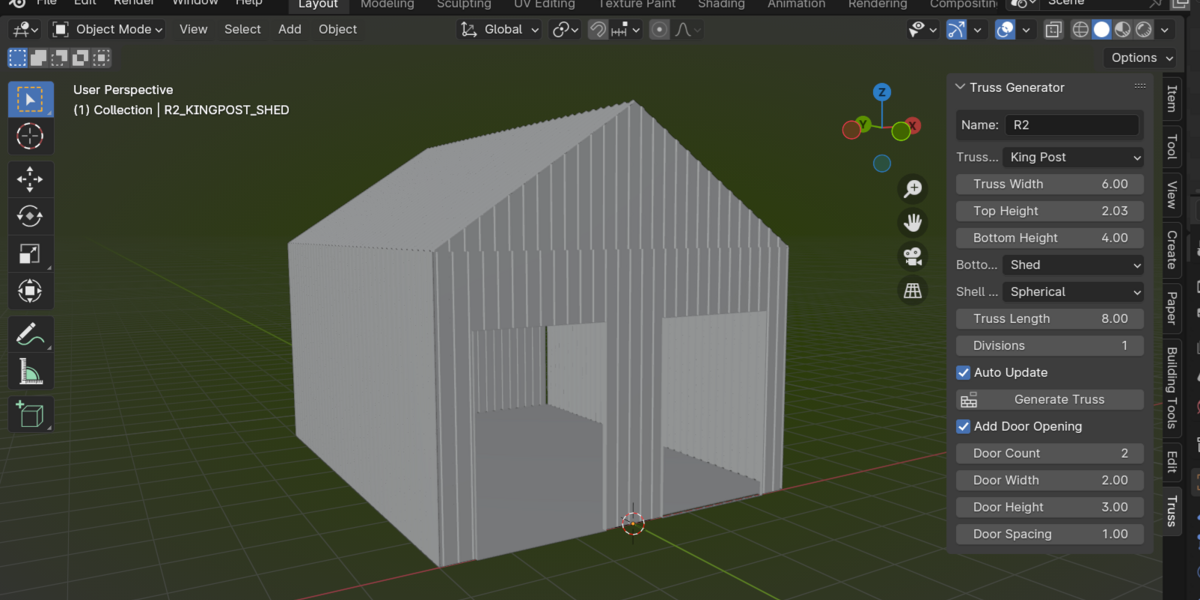

🔹 Door Openings
Add multiple door openings on the front face with options to control:
Door count
Width & height
Spacing between doors
Offset from shed center
Safety checks prevent overlapping or oversized door layouts.
🌍 Use Cases
Temporary site sheds
Fabrication yard shelters
Pre-engineered building (PEB) visualization
Architectural concept designs
Engineering presentation models
Industrial animation & simulation scenes
🚀 One-Click Workflow
No need to manually model beams, panels, or door holes. With a single click:
Select your truss type and shed parameters
Hit Generate Truss
Done! Your full shed model is added to the scene, fully editable and Blender-friendly
