Pipe & Cable Toolkit

Pipe & Cable Toolkit is a Blender add-on for quickly creating pipes and cables from curves while providing useful engineering utilities such as MBR validation and BOM export.

Designed for technical layouts, cable routing workflows and industrial visualization directly inside Blender.

Features

• Create pipes and cables directly from curves
• Round profile pipe and cable generation
• Minimum Bend Radius (MBR) checking
• Visual bend radius validation markers
• Automatic clamp placement
• Cable bundle support
• Bill of Materials (BOM) export to CSV
• Length calculation
• Optional weight and buoyancy estimation
• Adjustable radius and geometry resolution

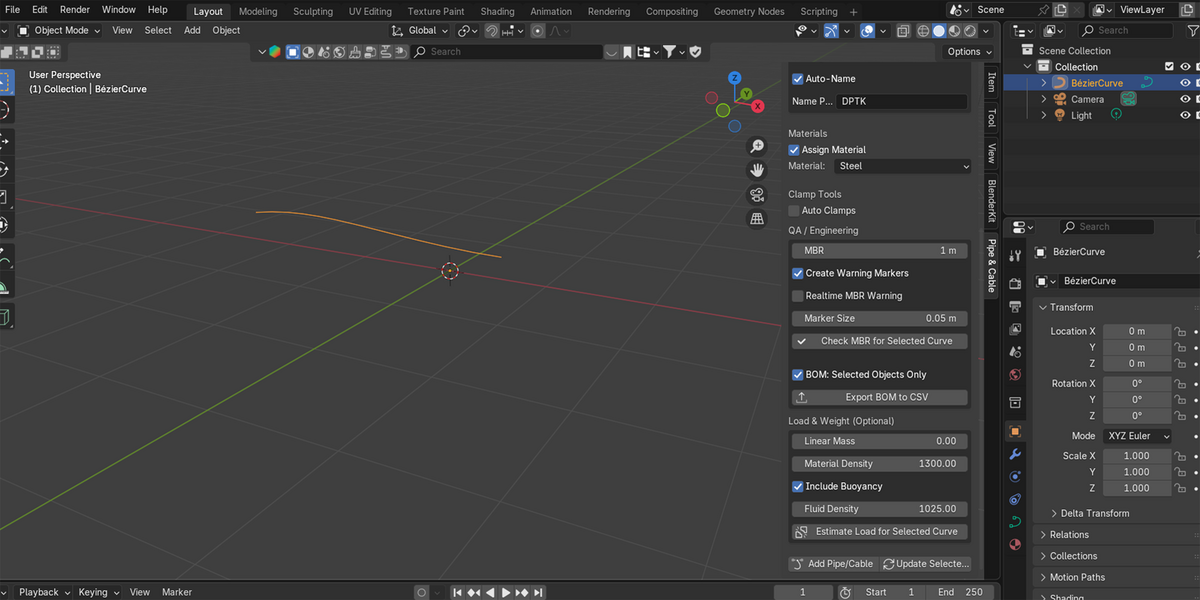

• Simple Blender sidebar interface

Typical Use Cases

• Cable routing visualization
• Pipe layout planning
• Engineering concept models
• Technical visualization
• Industrial scenes

Workflow

1. Draw or select a curve
2. Create pipe or cable geometry
3. Adjust radius and resolution settings
4. Run MBR validation if needed
5. Export BOM data

Requirements

Blender 3.x or newer

If you find this add-on useful, please consider leaving a rating. Your feedback helps support future updates and lets other users know what to expect. Thank you!
