DESCRIPTION
From a single rooftop to a full solar farm – built in seconds, fully procedural.
Create beautiful solar installations with just a few sliders. This Geometry Nodes generator builds everything you need: panels, mounting structures, sun-following pole trackers, a combiner box and all the cabling. Clean UVs, a lightweight trim texture and smart instancing keep even large solar parks fast and ready to render.
ABOUT THE CREATOR
Hi, I'm Henrik!
By day, I work as a 3D artist for an industrial manufacturer, turning real machinery into product visuals and assembly animations. That everyday experience goes into every asset I make: realistic proportions, clean topology, and tools that make work faster instead of more complicated. I hope this generator saves you as much time as it saves me.
FEATURES
Everything for a solar plant
Flexible arrays

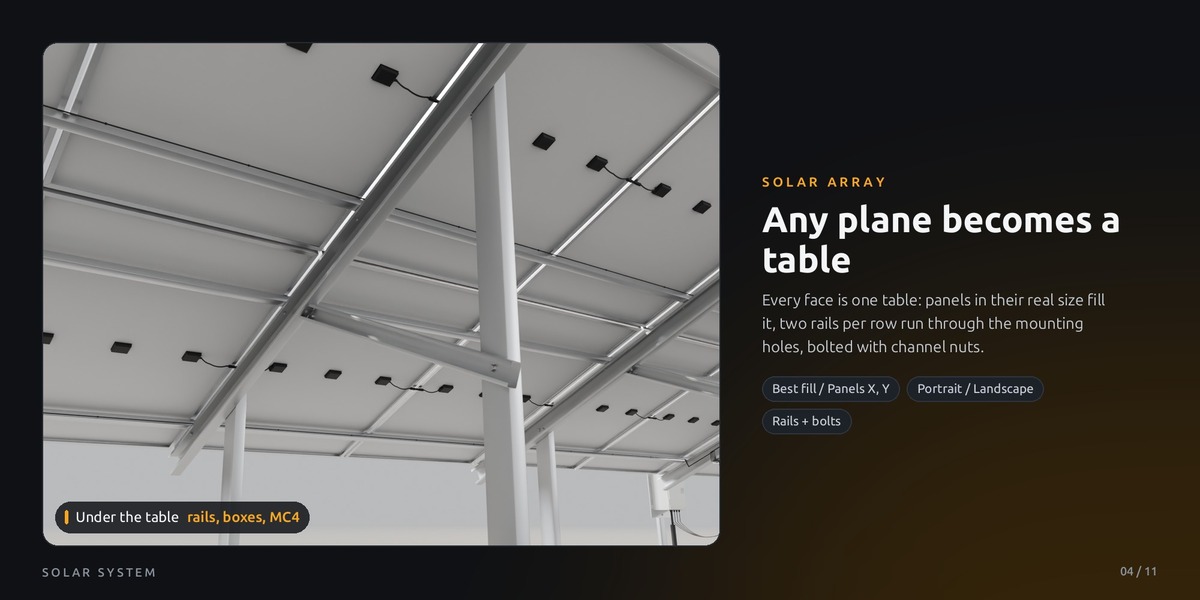

Shape rows, columns, spacing and orientation with live sliders; position and tilt come straight from your plane, every face is one table.
Smart mounting structure

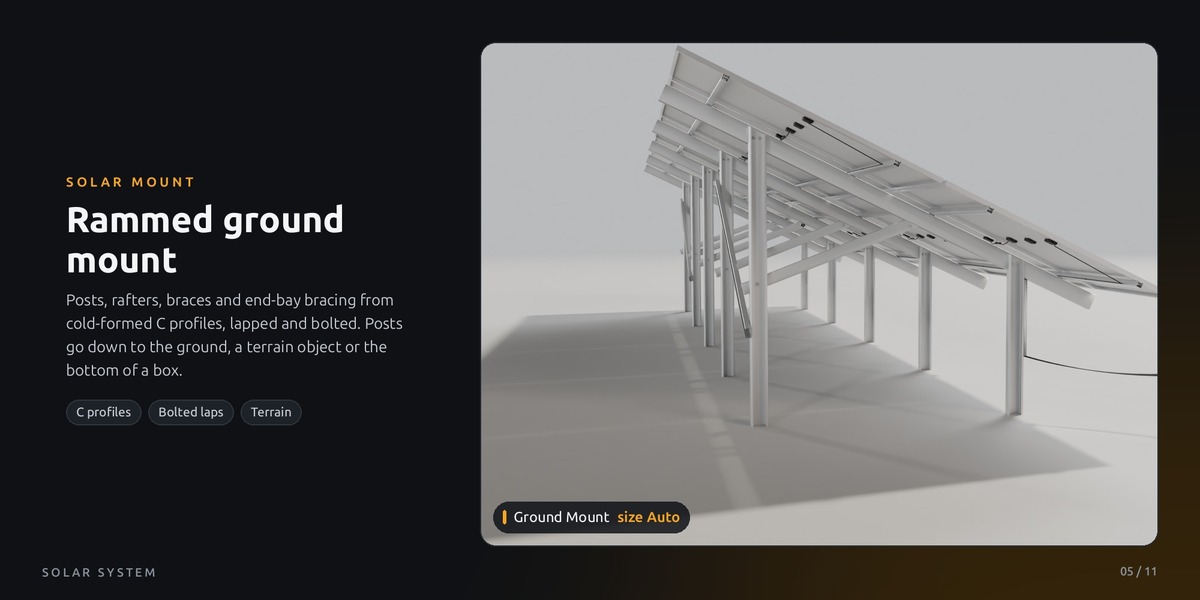

The substructure adapts automatically as your array grows: posts, rafters, braces and bolts, down to the ground or a terrain.
Single-axis pole tracker

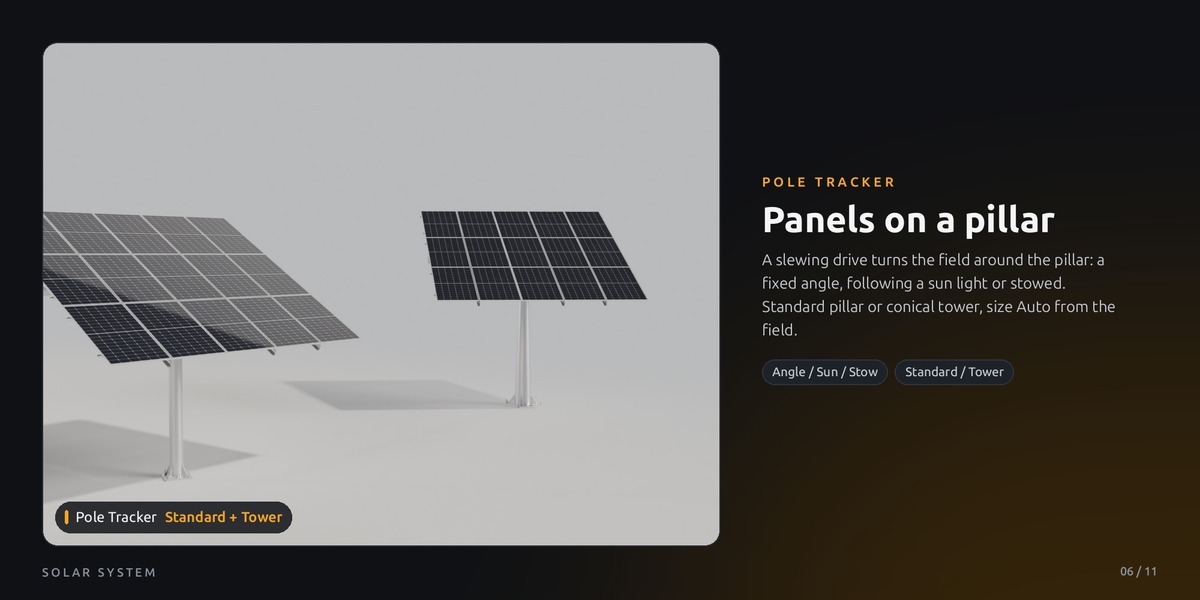

Two simple values let your panels follow the sun: pick a sun light or animate one angle.
Wired automatically
A combiner box and the cabling: MC4 jumpers under the panels, string cables tied along rails and posts into the box.
Trim texture and clean UVs
Crisp detail without heavy texture maps, and easy to customize. Or switch to fully procedural materials.
Made for big scenes
Thanks to instancing, hundreds of panels stay smooth in the viewport.
BUILT LIKE THE REAL THING
Every part where it belongs
Datasheet-sized modules with half-cut cells, frames, junction boxes and mounting holes. Strut channel rails through the holes, cold-formed C posts, rafters and braces lapped and bolted, the combiner box on its own rammed post, MC4 jumpers under the frames and string cables tied along rails and posts.
Solar PanelSolar ArraySolar MountCombiner BoxSolar Cables
MATERIAL MODE
Procedural or one trim sheet
Every modifier has a Material Mode. Procedural gives one material per part, with the cells drawn by a shader. Trim Sheet maps panels, rails, steel, box and cables onto one 4K texture and one material.
Material ModeMaterials per partTrim Sheet Material
ONE PLANE
Everything starts with a plane
Panels, rails, posts and braces all grow from one plane: move, scale or tilt it and everything follows. The combiner box and the cables are two more empty objects that point at the plane with an eyedropper.
Solar ArraySolar MountSolar Cables
Thanks for checking it out! If you have questions or ideas for new features, just send me a message, updates are always included. And if the generator helps your project, I'd be really happy about a quick rating ;)
QUICK START

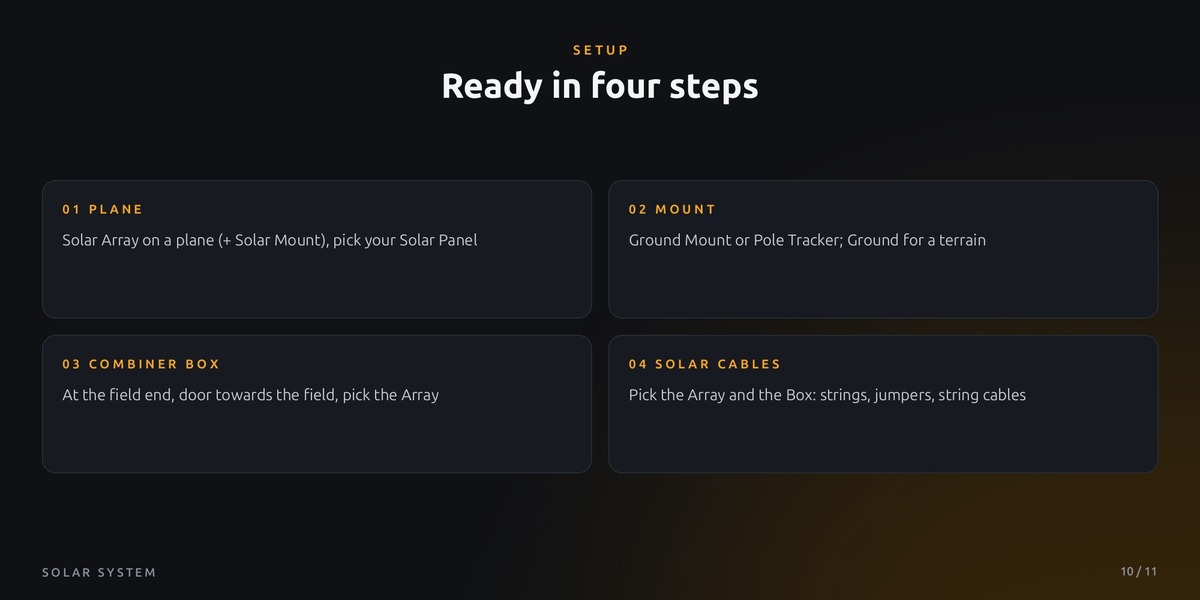

Ready in four steps
01
Plane
Solar Array on a plane (every face is one table), pick your Solar Panel with the eyedropper.
02
Mount
Solar Mount below it: Ground Mount (posts to the ground, a terrain or a box bottom) or Pole Tracker.
03
Combiner Box
Place it at the field end, door towards the field; pick the Array, it counts the strings.
04
Solar Cables
Pick the Array and the Box: strings, MC4 jumpers and string cables into every gland.
SOLAR PANEL

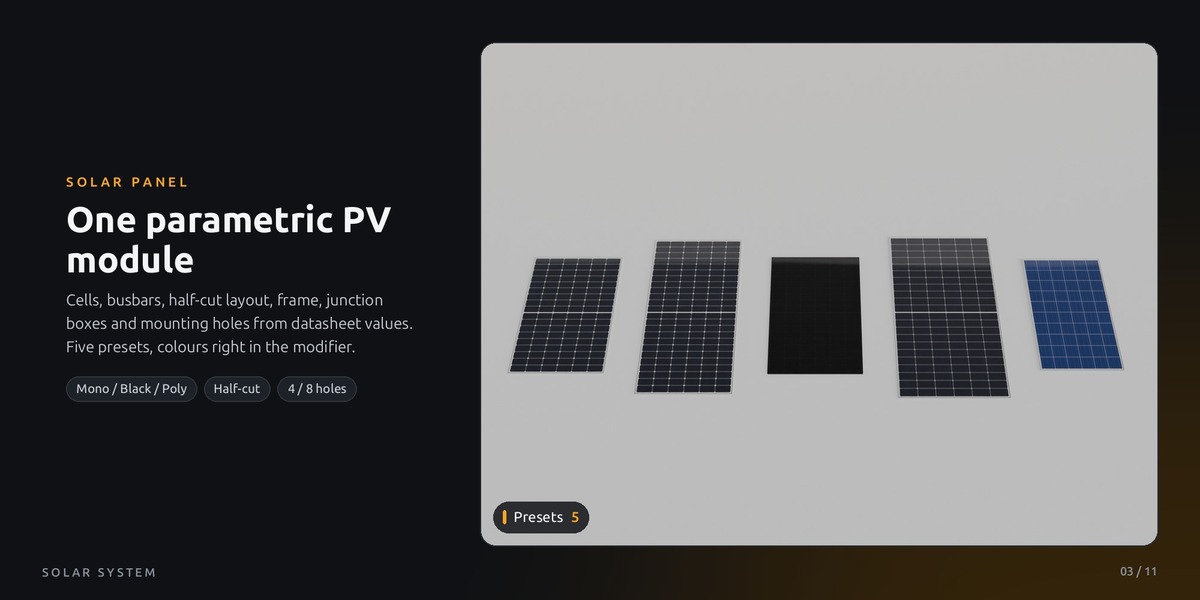

Size, Frame Depth datasheet values, 5 presets
Cells X / Y, Half-Cut, Busbars drawn by the shader
Junction Box, Split Boxes one or three boxes, leads
Holes 4 or 8 mounting holes, spacing
Colours cells, busbars, backsheet, frame, box
Detail Full / Simple / Proxy, viewport detail
SOLAR ARRAY
Panel any Solar Panel object
Orientation portrait / landscape
Panels X / Y, Module Gap best fill or fixed counts
Height above Plane roof hooks
Rails, Bolts size, overhang, M8 with channel nuts
SOLAR MOUNT
Type Ground Mount or Pole Tracker
Ground terrain object, posts rammed into it
Member Size, Post Embed, Brace Drop C profiles, size Auto by table depth
Tracking, Rotation, Sun pole tracker: angle, follow a sun light, stow
Pillar, Pillar Size standard or conical tower
COMBINER BOX
Strings / Array two glands per string
Box Height, Post, Post Embed own rammed post
Main Cable down into the ground in a conduit
SOLAR CABLES
Array, Box eyedroppers
Panels per String one string per row, or split
Sag, Max Hanging Span hanging when the box is close, else buried
Tie Spacing, Cable Radius cable ties along rails and posts
Viewport Detail As Render / Simple / Off
ALL MODIFIERS
Material Mode Procedural / Trim Sheet
Materials one per part, built-in defaults
Viewport switches light viewport for big fields, full render
INCLUDED
Solar Panel, Solar Array, Solar Mount, Combiner Box and Solar Cables modifiers
Object assets with previews and catalog: Solar Panel, Solar Array, Solar Table Box, Solar Pole Tracker, Combiner Box, Solar Cables
Demo scene: panel presets, roof, ground mount with box and cables, a solar field, pole trackers, the trim sheet version
Trim sheet texture packed into the file, quick start guide (README)
REQUIREMENTS
Blender 5.2 or newer
No add-on, pure Geometry Nodes
Self-contained, no external files
