🦅 Alembic Loop Controller (ALC)

Version: 1.0

Author: Shift4cube

Compatibility: Blender 3.0, 4.0, 5.0+

📄 Overview

ALC is a professional animation tool designed to supercharge your Alembic (.abc) workflow in Blender. It automates the complex process of creating seamless loops, managing playback speeds, and creating realistic crowd variation ("flocking") without needing complex node setups or manual driver scripting.

💾 Installation

1. Download the Alembic_Loop_Controller.zip file.

2. Open Blender.

3. Go to Edit > Preferences > Add-ons.

4. Click Install... (top right) and select the zip file.

5. Search for "ALC" or "Alembic" and enable the checkbox for Animation: Alembic Loop Controller (ALC).

📍 Where to Find It

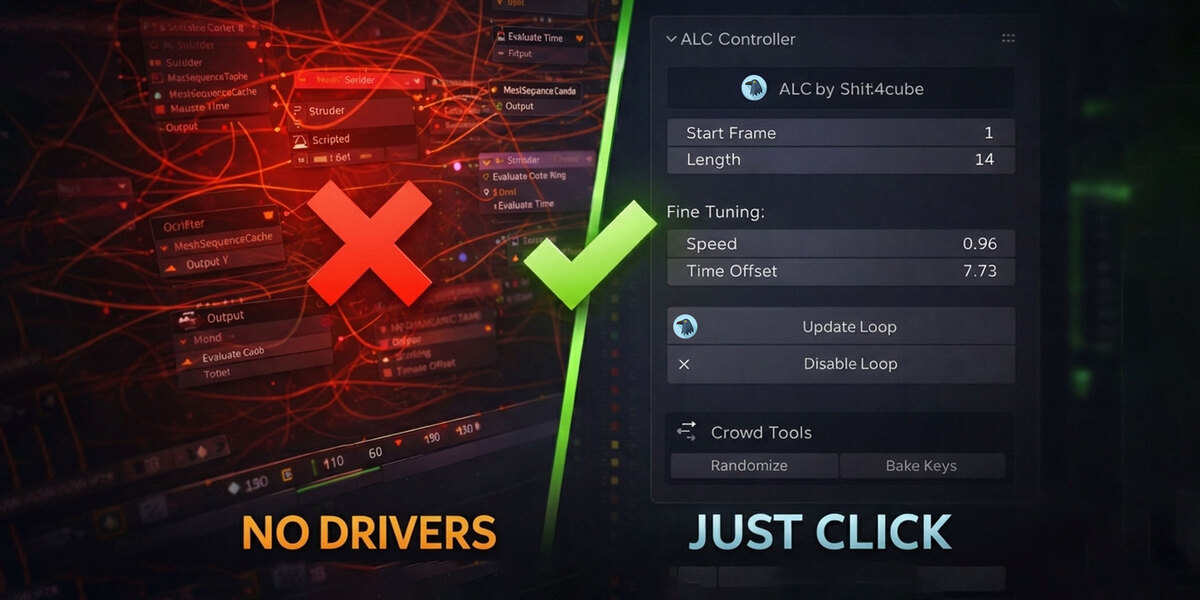

• View3D Sidebar (N-Panel): Click the "Alembic" tab on the right side of the 3D viewport.

• Panel Name: ALC Controller

🎛️ Core Features

1. The Loop Engine

The core function of ALC is to take a short Alembic clip (e.g., a 14-frame bird fly cycle) and make it loop infinitely.

• Start Frame: The frame in your Alembic file where the animation loop begins.

• Length: The total duration (in frames) of the loop cycle.

• Update Loop (Button): Applies the logic. It automatically detects the MeshSequenceCache modifier, ensures the cache file is unique (so birds don't copy each other), and injects a smart driver to handle the looping.

2. Fine Tuning

Customize the animation playback without re-exporting your files.

• Speed: Controls how fast the animation plays.

  • 1.00 = Normal Speed

  • 2.00 = Double Speed

  • 0.50 = Half Speed / Slow Motion

• Time Offset: Shifts the animation in time.

  • Example: An offset of 5.0 means the animation starts 5 frames later. This is crucial for breaking up uniformity in crowds.

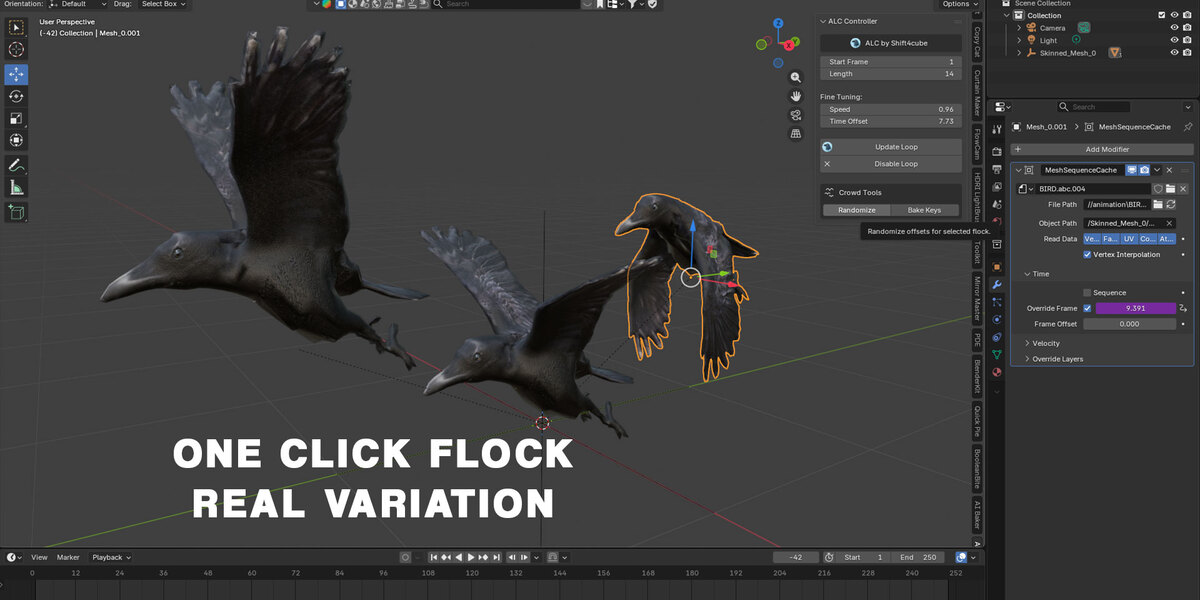

3. Crowd Tools (The "Flock" System)

Designed for users working with hundreds of objects (like birds, debris, or crowds).

• Randomize (Button):

  • Select multiple Alembic objects.

  • Click Randomize.

  • What it does: Instantly gives every selected object a random Time Offset (within the loop length) and a slightly random Speed (±5% variation). This creates a natural, organic "flock" look instantly.

4. Utility Tools

• Disable Loop: Removes all ALC drivers and restores the Alembic file to its default "Hold" or "Play once" behavior. Useful if you want to reset an object.

• Bake Keys:

  • The "Nuclear Option": If you need to send your file to a render farm or another computer that doesn't have ALC installed.

  • Clicking this converts the dynamic loop drivers into standard Keyframes.

  • Note: Once baked, you cannot adjust Speed/Offset settings anymore (unless you Undo).

🚀 Quick Start Workflow

1. Import your Alembic file (e.g., BIRD.abc).

2. Select the object.

3. Open the Alembic tab in the sidebar.

4. Set your Length (e.g., 14 frames).

5. Click Update Loop.

6. (Optional for Crowds) Duplicate the bird 50 times, select them all, and click Randomize.

⚠️ Important Notes

• Auto-Unique Cache: ALC automatically ensures that every object has its own unique copy of the cache pointer. This allows you to have 100 birds driven by the same .abc file on your hard drive, but playing at 100 different times in Blender.
