Arcane SDF
"Sculpt with Math. Blend with Freedom. Model Without Topology Limits."
Arcane SDF brings non-destructive, real-time Signed Distance Field (SDF) modeling directly into Blender's 3D viewport. Create complex hard-surface concepts, smooth organic silhouettes, and intricate mechanical panel cuts without fighting edge loops, non-manifold geometry, or boolean pinching.
Traditional polygonal boolean modeling requires constant topology clean-up, remeshing artifacts, and fragile vertex welding. SDF modeling changes the rules:
- Artifact-Free Smooth Booleans: Adjust smooth blending radii in real time with mathematically perfect curvature.
- Topology-Free Blockout: Focus 100% on shape, silhouette, and proportion without fighting mesh density.
- Native Blender Workflow: Manipulate shapes with standard Blender gizmos, hotkeys (G / R / S), and Empty controllers.
- 100% Watertight Output: Convert directly to clean manifold polygon meshes or export OpenVDB volume grids for simulation and rendering.

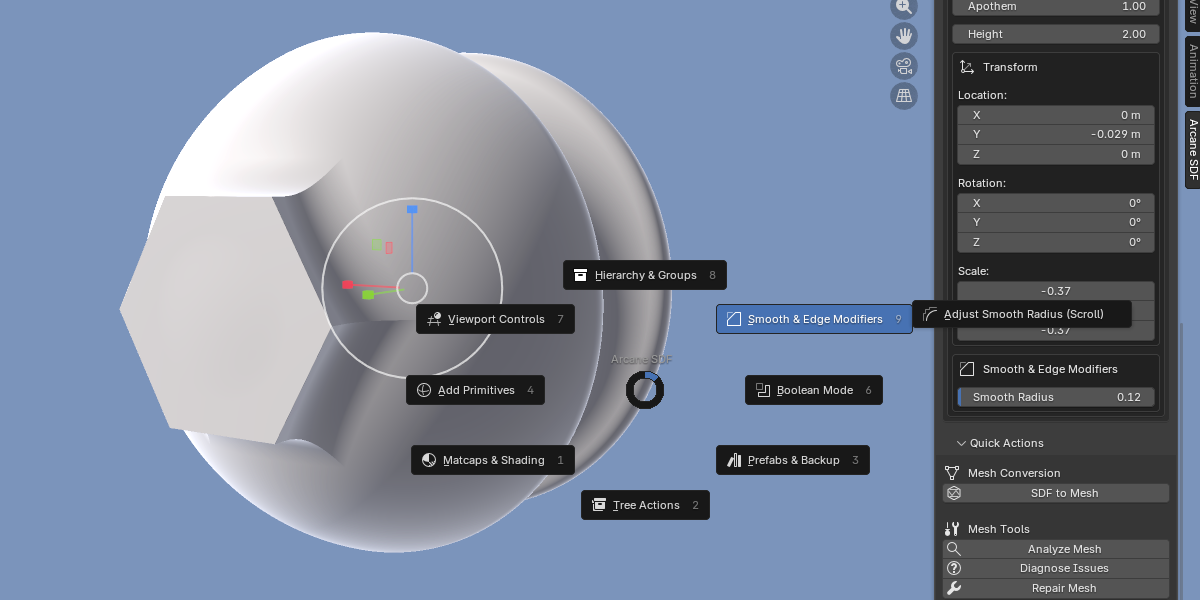

Shift + Q) Bring the entire SDF modeling toolkit directly to your mouse cursor:
Analytic Primitives & CSG
Combine high-precision shapes mathematically with zero performance overhead.

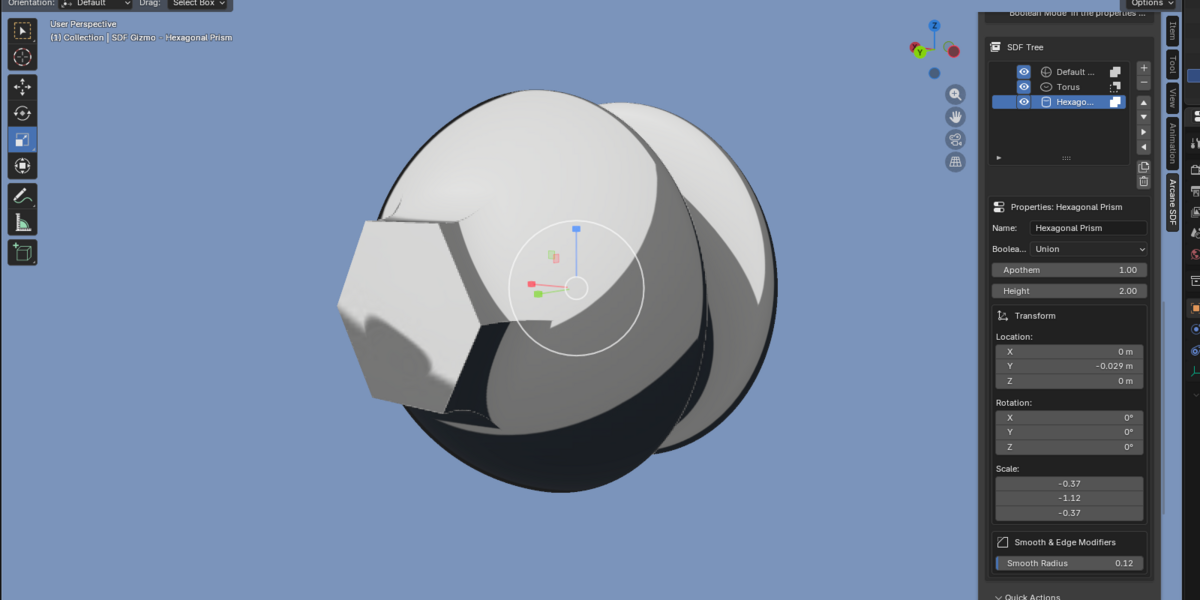

- Sphere, Box, Cylinder, Torus, Capsule, Capped Cone, Ellipsoid, Hex Prism
- Hard & Smooth Union, Difference, Intersection
- Dedicated Panel Cutter for recessed mechanical seams
Real-Time GPU Raymarching
Instant visual feedback inside Blender's viewport powered by dynamic GLSL shaders.
- Native Blender MatCap integration & custom image support
- Specular, diffuse, and metallic surface response controls
- Adjustable viewport quality and raymarch step density
Hierarchical Nested Groups
Organize complex concept designs into modular, reusable sub-assemblies.
- Full XYZ transform inheritance and parent-relative placement
- Driven by standard Blender Empty controllers
- Independent subtree duplication and outliner management
Mesh-to-SDF Hybrid Flow
Bridge standard 3D meshes with procedural distance fields effortlessly.
- Sample evaluated Blender meshes into real-time distance fields
- Carve, bevel, and blend custom geometry with primitives
- Fast caching with automatic depsgraph invalidation
OpenVDB & Native Meshing
Convert your distance fields into watertight polygonal models at any scale.
- Fast OpenVDB mesh generation with Native fallback
- No artificial resolution limits (expand as far as RAM allows)
- Direct .vdb volume export for Houdini, Cycles, or Unreal Engine
Prefabs & Kitbash Library
Build your own kitbash collection and reuse modular parts across projects.
- Save selected subtrees as portable
.asdfprefabs - Insert prefabs with regenerated UUIDs to prevent crosstalk
- Complete project persistence via native
.blendfiles
Arcane SDF is under active, continuous development. All future roadmap updates are included free for existing license holders! Pricing may increase for new licenses as new features are added, So get yours EARLY!
Phase 1: Advanced CSG & Viewport Depth
Next ReleaseExpanding the precision boolean toolkit and deepening viewport integration.
- Chamfer, Groove & Pipe Boolean Profiles: Procedural mechanical bevels, recessed seams, and welding beads.
- Shell / Hollow Modifier: Instant uniform wall thickness for 3D printing and hollow armor plates.
- Mirror & Radial Symmetry Generators: Non-destructive circular arrays, bolt rings, and axis symmetry.
- True Z-Depth Compositing: Seamless depth blending with Blender meshes, wireframes, and Grease Pencil.
Phase 2: Deformations & Studio Viewport
In DevelopmentExpressive shape warping, expanded primitive math, and studio shading.
- Twist, Bend & Taper Modifiers: Organic bending and aerodynamic hull tapering directly in the SDF tree.
- Parametric N-Gon Prisms: Dynamic 3 to 16-sided geometric primitives with corner rounding.
- Screen-Space Cavity & Curvature Shading: Built-in ambient occlusion and ridge highlights for high-contrast reads.
- Custom Light Rig Controls: User-controlled sun direction and specular response in the 3D view.
Phase 3: Multi-Material & 3D Paint
Future HorizonBringing color, texture data, and procedural painting into the SDF pipeline.
- Per-Shape Material Slots: Assign distinct materials and colors to individual SDF operands.
- Shape-Based 3D Paint: Use distance fields as virtual 3D brushes to stamp and blend color.
- Color & Attribute Mesh Baking: Export meshes with baked vertex colors and material IDs for game engines.
| Workflow / Discipline | How Arcane SDF Accelerates Your Pipeline |
|---|---|
| 🤖 Hard-Surface Concept Artists | Block out mechs, sci-fi weapons, and vehicles with instant smooth seams and panel cuts without polygon pinching. |
| 🗿 Digital Sculptors | Generate clean, organic base armatures and musculature shapes before moving into Dyntopo or Multires sculpting. |
| 🖨️ 3D Printing Creators | Create guaranteed 100% solid, watertight, non-intersecting manifold STL/OBJ models for resin and FDM printing. |
| 🎮 Game Tech Artists & VFX | Rapidly prototype kitbash props, generate collision hulls, and export OpenVDB volume grids for simulations. |
- Blender Version: Blender 4.2 LTS, 4.5 LTS, 5.0, 5.1+ (Windows, macOS, Linux).
-
Package Format: Standard Blender Extension Archive (
.zip) — install with 1 click via Edit > Preferences > Add-ons > Install from Disk. - Dependencies: 100% self-contained. Includes built-in Native meshers with optional OpenVDB hardware acceleration.
- License: GNU General Public License (GPL v3+). Free lifetime updates for all supported Blender versions.
