SMART LODS THAT PRESERVE WHAT MATTERS

    Protect UV seams, material boundaries, and silhouette edges — automatically.

    Adaptive protection ensures LOD1 keeps your UVs perfect while LOD4 reaches the target triangle count.

    Blender 3.0 – 4.4+

    Unity & Unreal Ready

    v1.0.0

------------------------------------------------------------

THE PROBLEM

  You spent hours hand-painting UVs, setting up material zones, and refining your silhouette.

  Then you hit Decimate and watch it all fall apart.

  Blender's built-in Decimate modifier treats every vertex equally. It has no concept of

  UV seams, material boundaries, or silhouette-defining edges. The result?

- Torn UV seams that cause visible texture breaks at every LOD level

- Collapsed material boundaries — faces from different materials merge into a mangled mess

- Destroyed silhouettes — the character's profile turns into a lumpy blob at medium distance

- No budget control — you guess at ratios and hope the tri count lands where you need it

- Manual renaming — every LOD needs to be named by hand for Unity or Unreal import

- No adaptive reduction — you either protect features or reach the target, never both

  For a single mesh this is annoying. For a project with dozens of assets, it is a pipeline-breaking bottleneck.

------------------------------------------------------------

THE SOLUTION

  LOD Forge uses vertex group protection to tell Blender's Decimate modifier

  which vertices matter. Before decimation, LOD Forge analyses your mesh and assigns

  protection weights to vertices that sit on UV seams, material boundaries, or silhouette edges.

  The Decimate modifier then avoids collapsing those vertices first, preserving the features

  that define your asset's visual quality.

  But here is where LOD Forge goes further: Adaptive Protection Scaling. For gentle

  LOD levels (LOD1 at 50% reduction), protection weights stay at full strength — your UVs

  remain perfect. For aggressive LOD levels (LOD3/LOD4 where the decimation ratio drops below 0.3),

  LOD Forge automatically scales down the protection weights so the decimator can actually reach

  the target triangle count. The formula is simple: weight = weight × max(0.2, ratio).

  This means LOD1 preserves features perfectly while LOD4 allows more aggressive reduction — no

  manual tweaking required.

  The result: LODs that look like they were hand-reduced, generated in seconds, with

  engine-correct naming and polygon budget enforcement built in.

------------------------------------------------------------

FEATURES

1. SMART DECIMATION WITH VERTEX GROUP PROTECTION

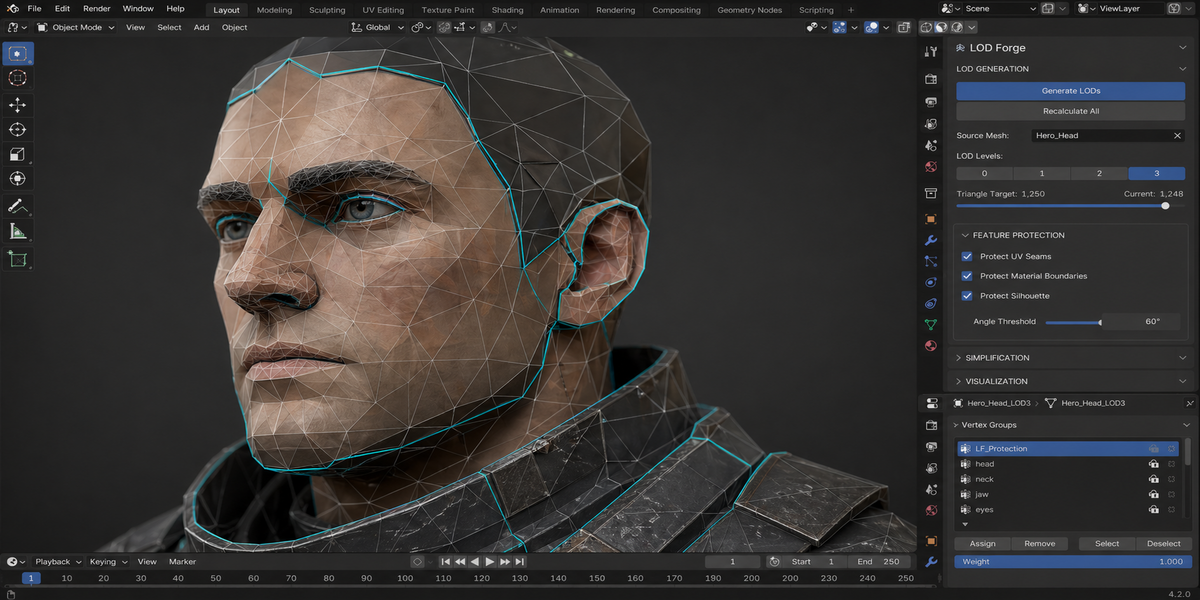

  LOD Forge detects three categories of important geometry and paints a protection vertex group

  before each decimation pass:

- UV Seams — vertices on marked seam edges stay intact, preventing texture tearing

- Material Boundaries — edges shared by faces with different material indices are protected, keeping material zones clean

- Silhouette Edges — edges where the angle between adjacent face normals exceeds a configurable threshold are preserved, maintaining the readable outline of your model

Each protection category can be toggled independently, and the silhouette angle threshold is adjustable (default 40°).

2. ADAPTIVE PROTECTION — THE KEY INNOVATION

  This is what sets LOD Forge apart from every other LOD tool. When the decimation ratio for a level

  drops below 0.3, protection weights are automatically scaled down using the formula:

  scaled_weight = original_weight × max(0.2, ratio)

- LOD1 (ratio ~0.5): Full protection — UVs and silhouette preserved perfectly

- LOD2 (ratio ~0.3): Full protection — still within the safe range

- LOD3 (ratio ~0.1): Scaled protection — weights reduced so the decimator can reach the target, but important features still get some priority

- LOD4 (ratio ~0.05): Minimal protection (floor at 0.2) — aggressive reduction while maintaining basic feature awareness

  Why this matters: Without adaptive protection, you face an impossible choice — either

  protect features and never reach your low-poly target, or disable protection and destroy your UVs.

  LOD Forge solves this by gradually releasing protection as the LOD gets more aggressive. LOD1 keeps

  your UVs perfect. LOD4 reaches the target triangle count. Both happen automatically.

3. ENGINE-SPECIFIC LOD NAMING

  Engine            Convention                                     Example

  ----------------  ---------------------------------------------  ------------------------------

  Unity (LODGroup)  MeshName_LOD0, _LOD1, _LOD2, _LOD3 + parent..  Hero_LOD0 inside Hero_LODGroup

  Unreal            MeshName_LOD0 ... _LOD3 + parent group Mesh..  Hero_LOD0 inside Hero_LODs

  Custom            User-defined suffix pattern                    Any naming you need

4. LOD PRESETS

  Preset               LOD0    LOD1    LOD2   LOD3

  -------------------  ------  ------  -----  -----

  Desktop Character    15,000  7,500   3,000  1,500

  Desktop Environment  25,000  12,000  5,000  2,000

  Mobile Character     5,000   2,500   1,000  500

  Mobile Prop          2,000   1,000   500    200

  When a preset is selected, the triangle targets are shown as read-only info in the panel.

  If a target exceeds the source mesh's triangle count, an info icon is displayed to let you know that

  level will be created as an exact copy of the source — no unnecessary decimation applied.

5. CUSTOM TRIANGLE TARGETS PER LEVEL

  Need specific numbers for your pipeline? Select the Custom preset to unlock four editable

  fields — one per LOD level. Enter exact triangle count targets tailored to your project's performance

  budget.

6. POLYGON BUDGET ENFORCEMENT

  Set a maximum triangle count for each LOD level. After generation, LOD Forge runs a

  pass/fail verification against your budget. Green means the LOD is within budget; red

  means it exceeded the target — no more guessing.

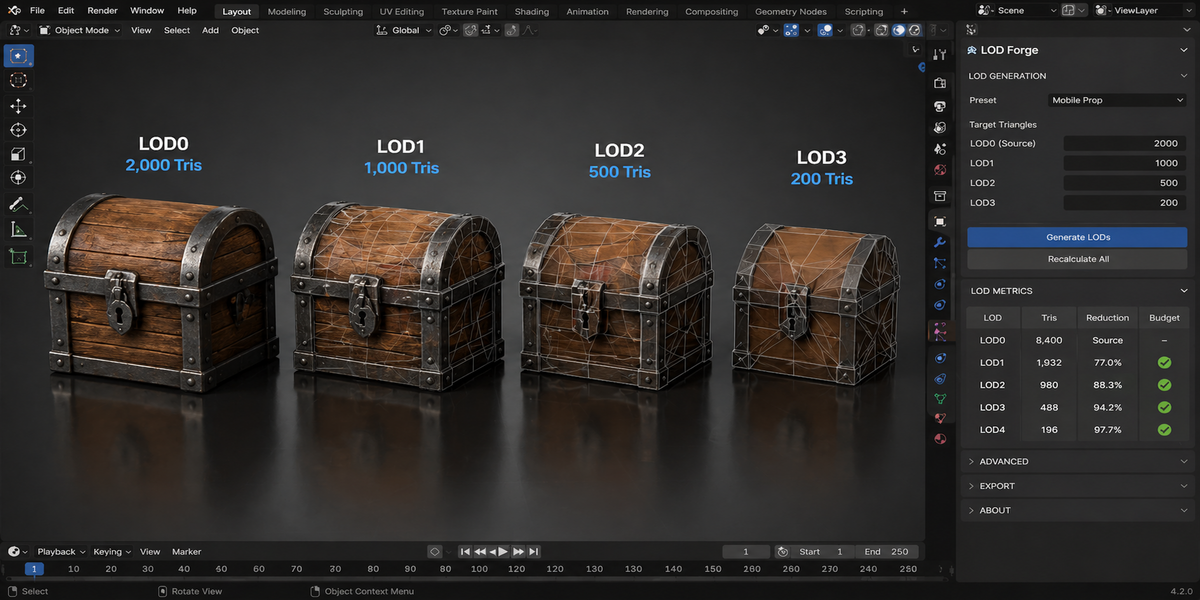

7. LOD METRICS TABLE

  A built-in metrics panel shows triangle count, vertex count, reduction percentage,

  and budget status (pass/fail) for every generated LOD — all in one glance. The source

  row shows "Source" instead of a reduction percentage for clarity.

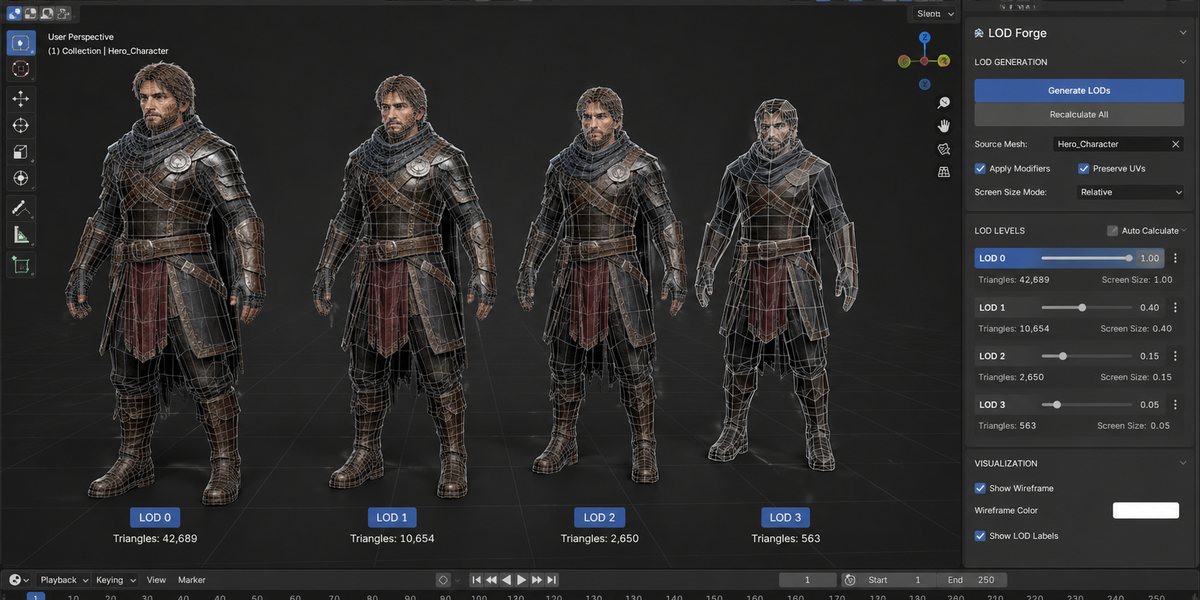

8. VISUAL LOD PREVIEW IN VIEWPORT

  Cycle through LOD levels directly in the viewport using Previous/Next buttons. Instantly compare

  LOD0 to LOD3 without leaving your 3D view. A "Show All LODs" toggle displays every level

  side-by-side for quick visual comparison.

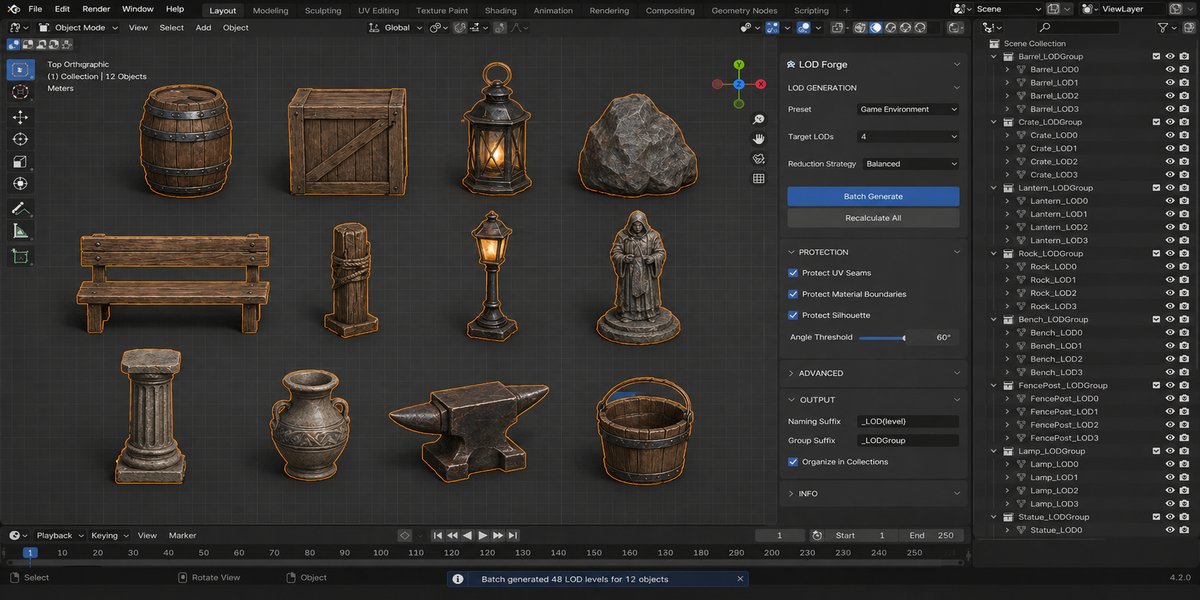

9. BATCH GENERATION ACROSS MULTIPLE OBJECTS

  Select multiple objects and generate LODs for all of them in one click.

  LOD Forge processes each mesh independently, applying the same preset or

  custom targets across your entire selection. Non-mesh objects are automatically skipped.

10. SMART COPY WHEN TARGET >= SOURCE

  If the target triangle count for a level is greater than or equal to the source mesh's actual

  triangle count, LOD Forge creates that level as an exact copy of the source. No

  unnecessary decimation is applied — your mesh is preserved as-is at that level.

11. READ-ONLY PRESET INFO WITH SOURCE AWARENESS

  When a preset is active, the triangle targets are displayed as read-only values in the panel so

  you always know what you are generating. If any target exceeds the source mesh's triangle count,

  an info icon appears next to that level, indicating it will be copied rather than decimated.

12. PARENT TO EMPTY ORGANIZATION

  Generated LODs are automatically parented to an empty for clean outliner

  hierarchy. Each LOD set is neatly grouped, ready for export.

------------------------------------------------------------

BEFORE & AFTER

  Standard Decimate (Blender Default)            LOD Forge — Smart Decimation

  ---------------------------------------------  ---------------------------------------------

  UV seams torn open — visible texture cracks..  UV seams preserved — textures remain clean ..

------------------------------------------------------------

WHO IS THIS FOR?

- Game artists shipping assets to Unity or Unreal who need production-quality LODs without manual retopology

- Environment artists building large scenes that require aggressive polygon reduction without visual degradation

- Indie developers who do not have a dedicated tech artist to hand-build LOD chains

- Asset store creators who need to include LODs with every product to meet marketplace standards

- Archviz studios optimizing real-time walkthroughs with dozens of unique props

- Mobile game developers operating under extremely tight polygon budgets

------------------------------------------------------------

COMPATIBILITY

- Blender: 3.0, 3.1, 3.2, 3.3, 3.4, 3.5, 3.6, 4.0, 4.1, 4.2, 4.3, 4.4+

- OS: Windows, macOS, Linux

- Export formats: FBX, glTF, OBJ — any format Blender supports

- Engine integration: Unity LODGroup, Unreal Engine LOD import, or custom naming

------------------------------------------------------------

HOW TO USE — 6 STEPS

1. Select your mesh — Pick one or more objects in the viewport.

2. Open LOD Forge — Find the panel in the 3D Viewport sidebar (N-panel > LOD Forge).

3. Choose a preset or set custom targets — Select Desktop Character, Desktop Environment, Mobile Character, Mobile Prop, or enter your own triangle counts per level.

4. Configure protection — Toggle UV seam, material boundary, and silhouette protection. Adjust the silhouette angle threshold if needed.

5. Pick your engine profile — Unity, Unreal, or Custom naming.

6. Click "Generate LODs" — LOD Forge creates all levels, applies adaptive protection, checks budgets, and organizes the hierarchy. Done.

------------------------------------------------------------

CHANGELOG

V1.0.0 — INITIAL RELEASE

- Smart decimation with vertex group protection (UV seams, material boundaries, silhouette edges)

- Adaptive protection scaling — weights automatically reduced for aggressive LOD levels (ratio = source tris, LOD is created as exact copy (no unnecessary decimation)

- Preset targets shown as read-only info in panel, with info icon when target > source tris

- Parent-to-empty outliner organization
