Michael Kulzer
PRODUCTION PIPELINE FOR BLENDER & GODOT
NEXUS GODOT PIPELINE
v2.2.0 | Blender 5.2 & Godot 4.7
The missing link between Blender and Godot. Define gameplay, materials, and level layout in Blender - export once, import ready-to-use in Godot.
| ⚙ Game Logic in BlenderPhysics, collision, navigation, metadata, scripts, and groups - configured before export. |
🎨 Smart Material PipelineShader conversion, ORM packing, texture ingest - no broken links in Godot. |
🗺 Level AssemblyLinked libraries, MultiMesh, custom LODs - build levels without duplicate geometry. |
WHAT'S NEW
v2.2.0 New Meshoptimizer Preview, gltfpack 1.3.
v2.0.0 Combined Asset & nested Assets, Parallel + Smart Batch, gltfpack 1.2.
v1.5.0 Extended shader node conversion, gltfpack 1.1, persistent export path preferences.
v1.4.0 Flexible absolute/relative Source & Target paths. Added GLB support.
v1.3.0 Icon bar for cleaner section navigation in the export panel.
v1.2.0 Collection presets and flexible metadata system (replaces Surface Tags).
Last Update: October 2, 2026
BLENDER TO GODOT WORKFLOW
Production-Ready Exports. Directly From Blender.
Nexus transforms the tedious, error-prone task of exporting assets into a seamless, production-ready workflow. Stop fixing origin points, re-assigning materials, and manually creating collision shapes.
| ✓ Physics & Collision in Blender | ✓ Materials That Survive Re-Export |
| ✓ Linked Level Assembly | ✓ Hash-Based Smart Export |
| ✓ Batch Export Without Freezing | ✓ Blender 5.1 & Godot 4.6 Ready |
WHY NEXUS
Why Choose Nexus Godot Pipeline?
Unlike manual glTF workflows that require re-configuring physics, materials, and scene structure in Godot after every change, Nexus keeps everything integrated - with a matching Godot importer that applies your settings automatically.
Save time, reduce errors, and ship faster - without leaving your Blender-to-Godot workflow.
CORE FEATURES
Built For Modern Game Production
Game Logic in Blender
Define your gameplay properties before you even export.
- Physics Automation - Static, Rigid, Character, or Animatable bodies in the viewport.
- Collision Shape Generator - Box, Sphere, Capsule, or Convex shapes inside Blender.
- Navigation & Triggers - NavMeshes and Area3D triggers that import ready-to-use.
-
Metadata System - Key-value metadata applied in Godot via
set_meta(). - Scripts & Groups - Attach Godot scripts and assign groups within Blender.
Smart Material Pipeline
Decouples Blender materials from Godot resources - no broken links or overwrites.
- Shader Conversion - Node-to-shader conversion for Principled BSDF and procedural setups.
- ORM Packing - Pack Occlusion, Roughness, and Metallic into one optimized texture.
- Texture Ingest - Gathers external textures into your project folder automatically.
-
Reference Existing - Link Blender materials to existing Godot
.tresplaceholders. - Material Index - Shared materials tracked with content-hash deduplication.
Next-Gen Level Design
- Combined Asset - Nest assets and skeletal collections into one exportable unit (replaces nested Levels).
- Nested Assets - Inline Asset/Skeletal collections keep their own Godot root type on import.
-
Automated Custom LODs - Suffixes like

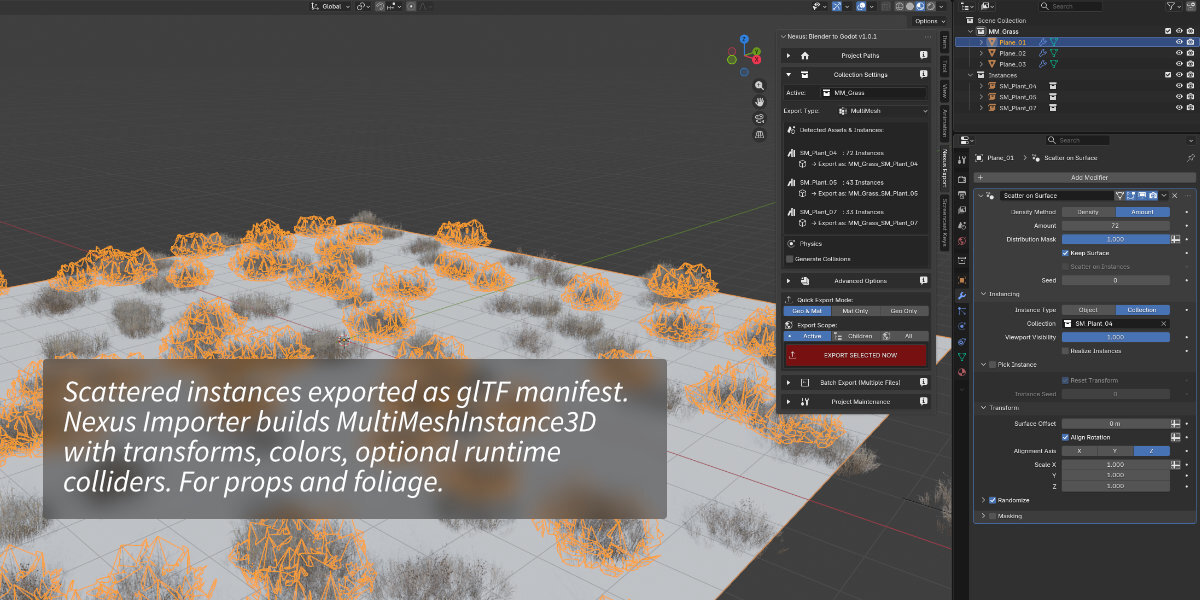

_LOD1configure Godot visibility ranges automatically. - MultiMesh Power - Geometry Nodes to MultiMeshInstance3D, with collision via PhysicsServer.
- Smart Level Assembly - Reuse exported assets via linked collection instances.
- Linked Libraries - Auto-Reload for team workflows with Blender Linked Libraries.
- Collection Presets - Save and apply export settings across collections with one click.
Godot Importer
|
Built for Crunch Time
|
Workflow / How It Works
Designed for a monorepo layout - Blender source and Godot target side by side - without rebuilding your pipeline.
| 1 | Install the Blender extension and Godot importer addon. |
| 2 | Configure Project Paths - Project Root, Source Folder, Godot Target. |
| 3 | Set Export Type on each collection (Asset, Level, MultiMesh, etc.). |
| 4 | Configure gameplay - physics, collision, metadata, scripts, materials. |

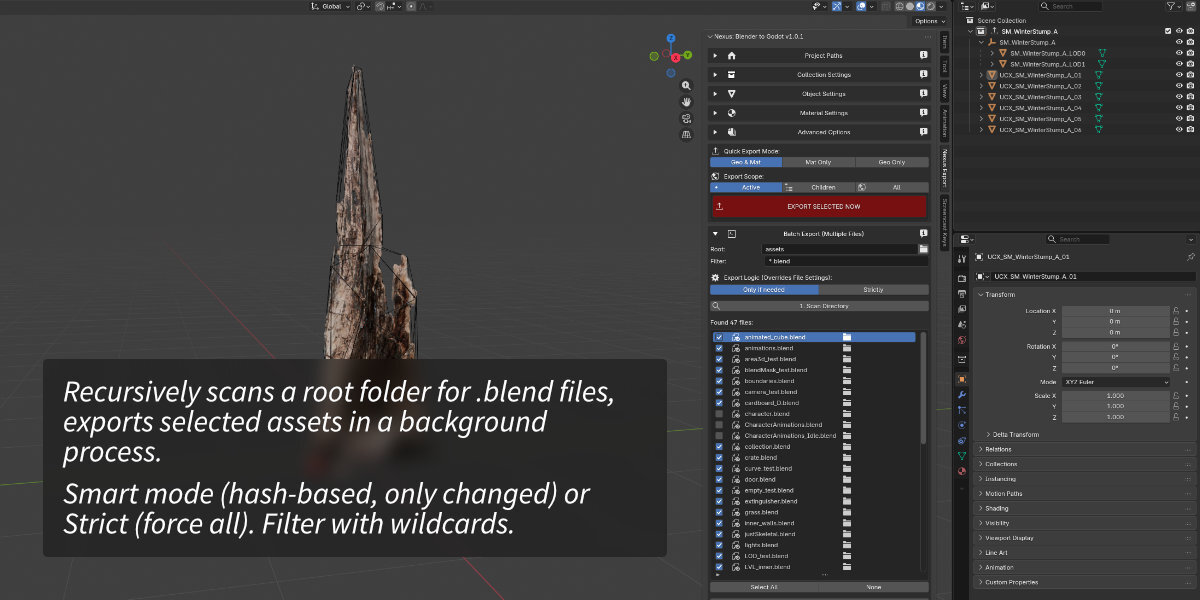

| 5 | Export with Quick Export (Ctrl+Shift+E) or Batch Export. |
| 6 | Open Godot - Nexus Importer applies settings and resolves placeholders. |
Use Cases
Perfect For Every Blender-to-Godot Workflow
Indie Game DevelopmentShip props, characters, and levels without manual Godot cleanup after every Blender iteration. |
Level Design & BlockoutAssemble levels from linked asset libraries with collision, navigation, and triggers pre-configured. |
Team PipelinesShared presets, linked libraries with auto-reload, and hash-based exports keep large projects in sync. |
Spatial Audio ProjectsExport Resonance geometry from Blender and pair with the free Nexus Resonance Godot addon. |
Performance & Compatibility
Fast, Stable, and Built for Production
| ✓ Blender 4.2 - 5.2 | ✓ Godot 4.6 - 4.7 | ✓ glTF & GLB |
| ✓ Shader Conversion | ✓ Batch Export | ✓ gltfpack 1.3 |
Who Is This For
| 🎮 Solo DevsSkip manual Godot setup and focus on building your game. |
👥 Small TeamsPresets and shared index files keep everyone in sync. |
🗺 Level DesignersLinked assets, MultiMesh, and LOD automation. |
🎨 Technical ArtistsMaterial pipeline, ORM packing, shader conversion. |
What's Included
|
How to Use
|
Everything Included In Nexus Godot Pipeline
Export & Workflow ✔ Asset / Skeletal / Level / Combined / MultiMesh / Anim Library |
Gameplay & Physics ✔ StaticBody / RigidBody / CharacterBody / Area3D |
Materials & Shaders ✔ Shader Node Conversion |
Godot Importer ✔ Auto & Manual Import Modes |
Join the Discord for support and collaboration!
Nexus Godot Pipeline | Blender 4.2 - 5.2 | Godot 4.6 - 4.7 | GPL License
