Josef Ludvík Böhm
SD 1.4+ was uploaded and approved on Extensions.blender.org
making this tool free and open source for everyone!
BIG thank you to all existing customers,
without you this wouldn't be possible.
If you want to support my work, I'd greatly appreciate if you buy a licence on Superhive anyway.
Paid licences also have access to older versions, working in Blender 3.6 - 4.2.
Thank you!
SurfAce Diagnostics 1.4.1
Your companion for technical surfacing.
Curvature graph and analytic shaders
just one click away.
Curvature graph and analytic shaders
just one click away.
Why this exists
To help you achieve next level of quality
of any kind of technical surface with complex curvature.
Automotive, Product Design, Game Assets, ... You name it.
What is inside
Zebra / Isoangle / Sections / Slice / Proximity / Draft / Radius / Curvature / CGraph / Angle Graph
......

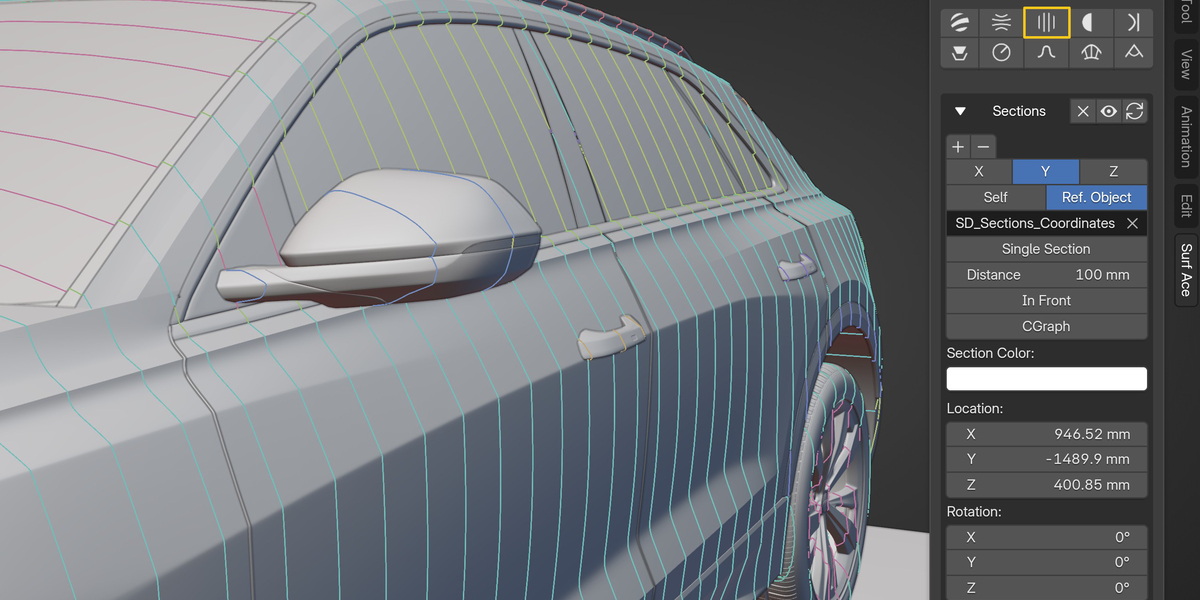

- Sections -

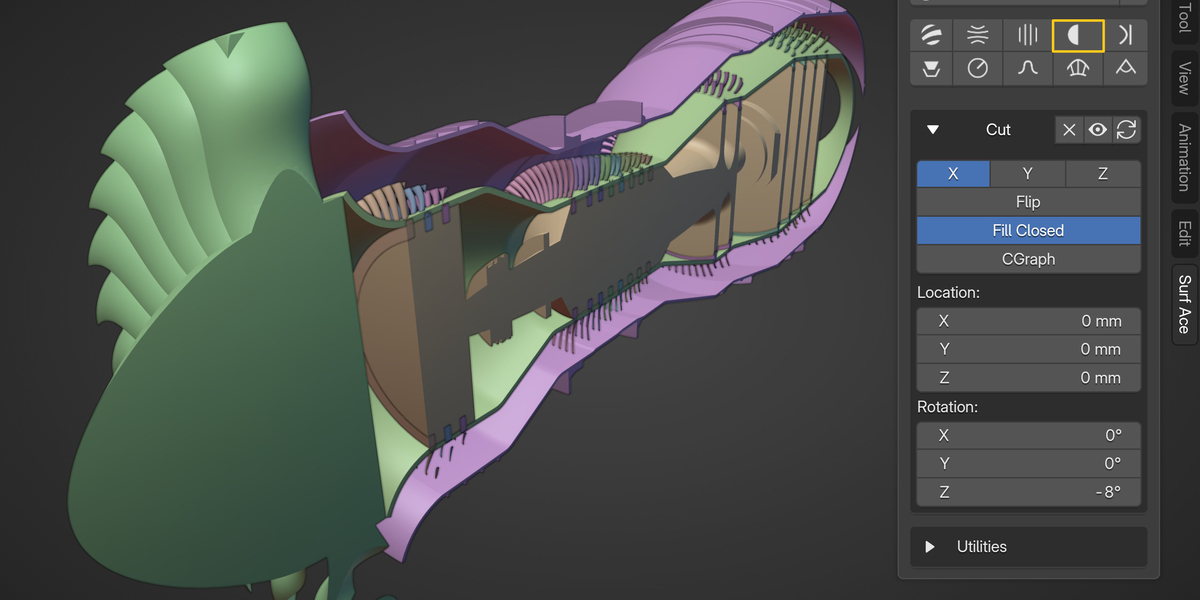

- Cut -

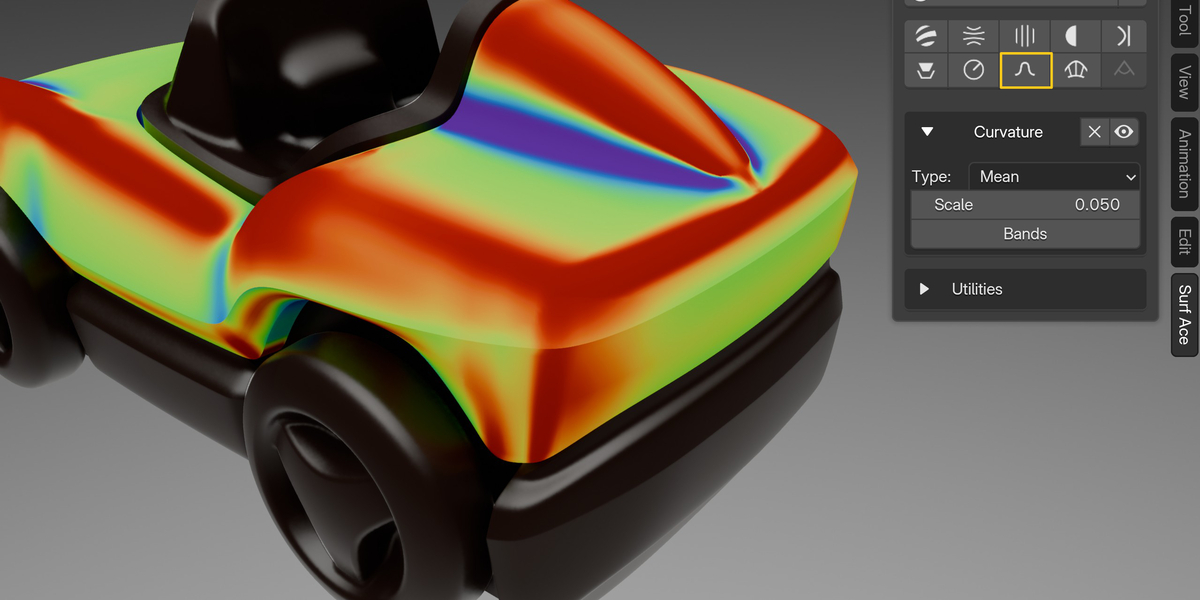

- Curvature -

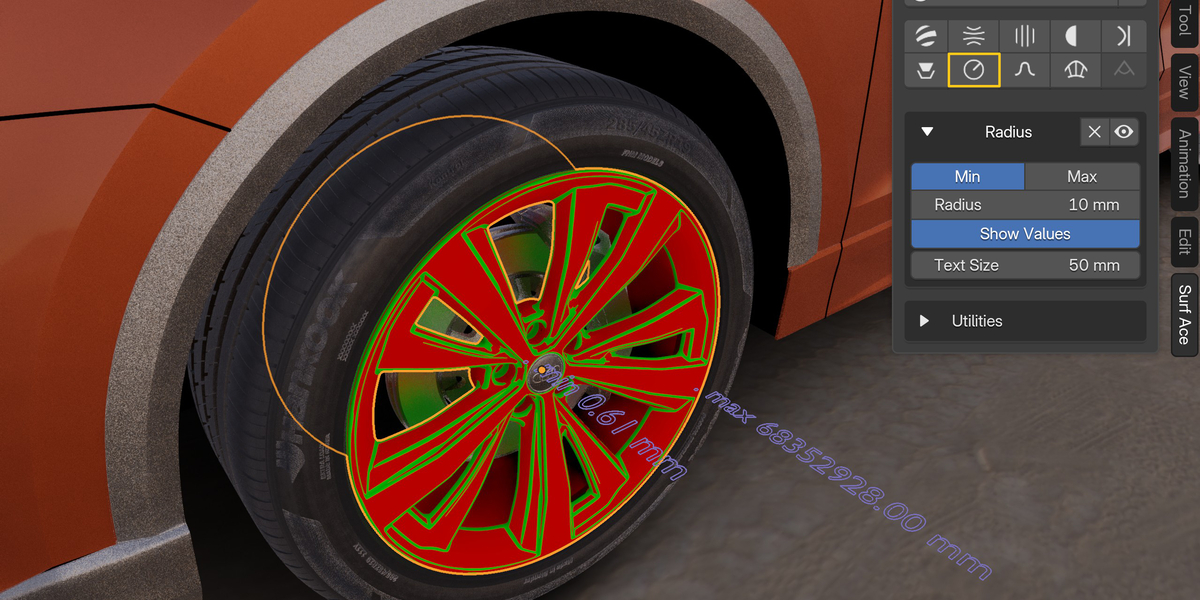

- Radius -

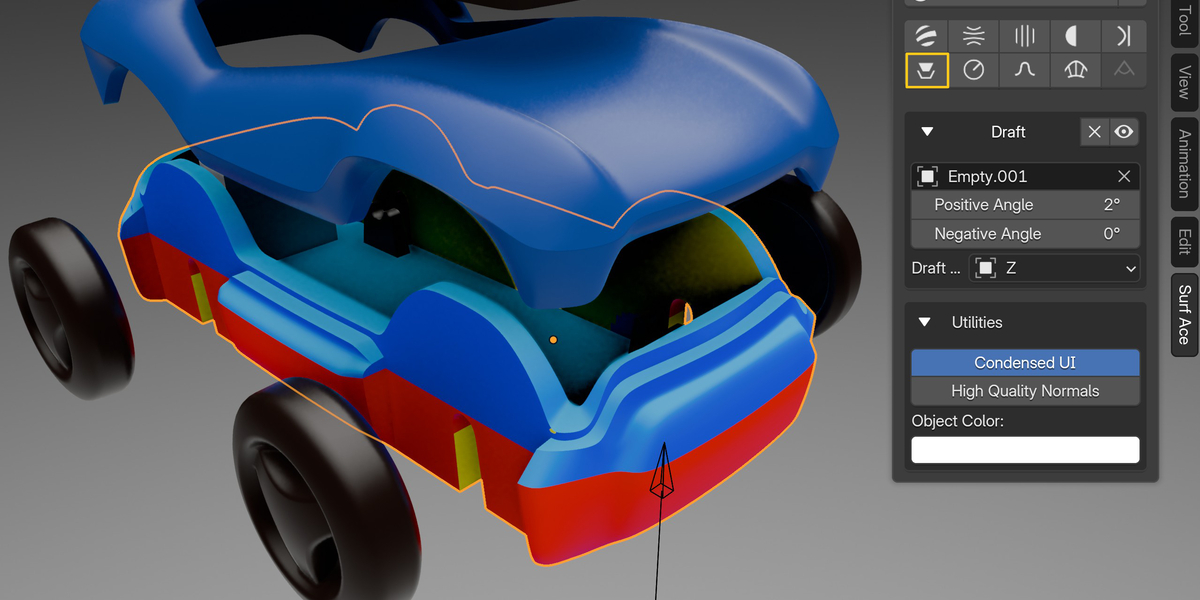

- Draft -

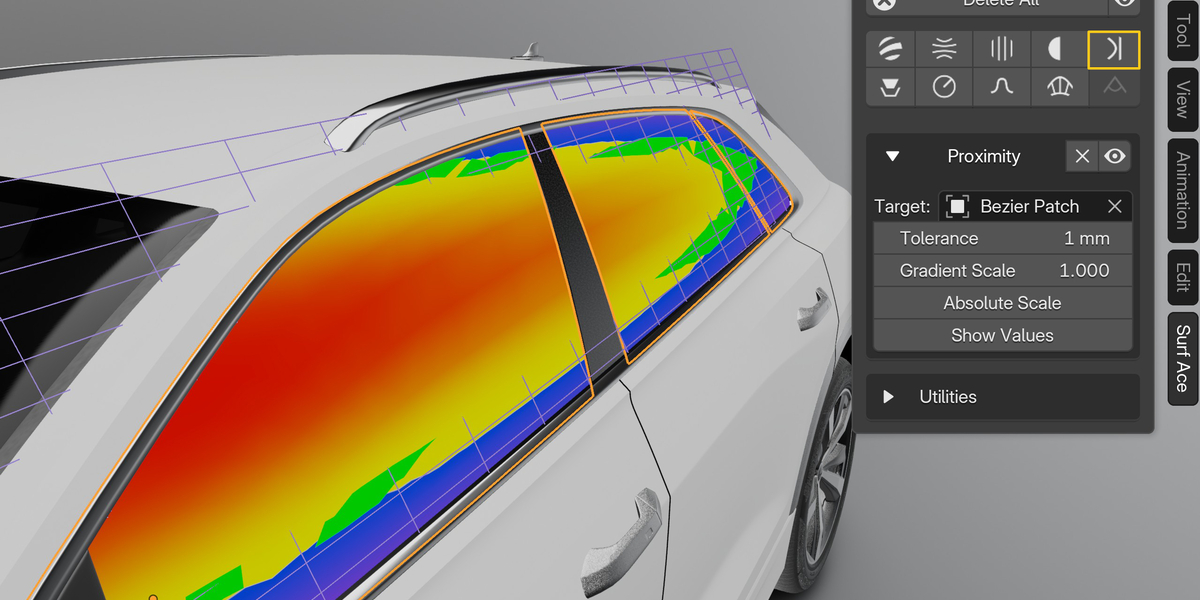

- Proximity -

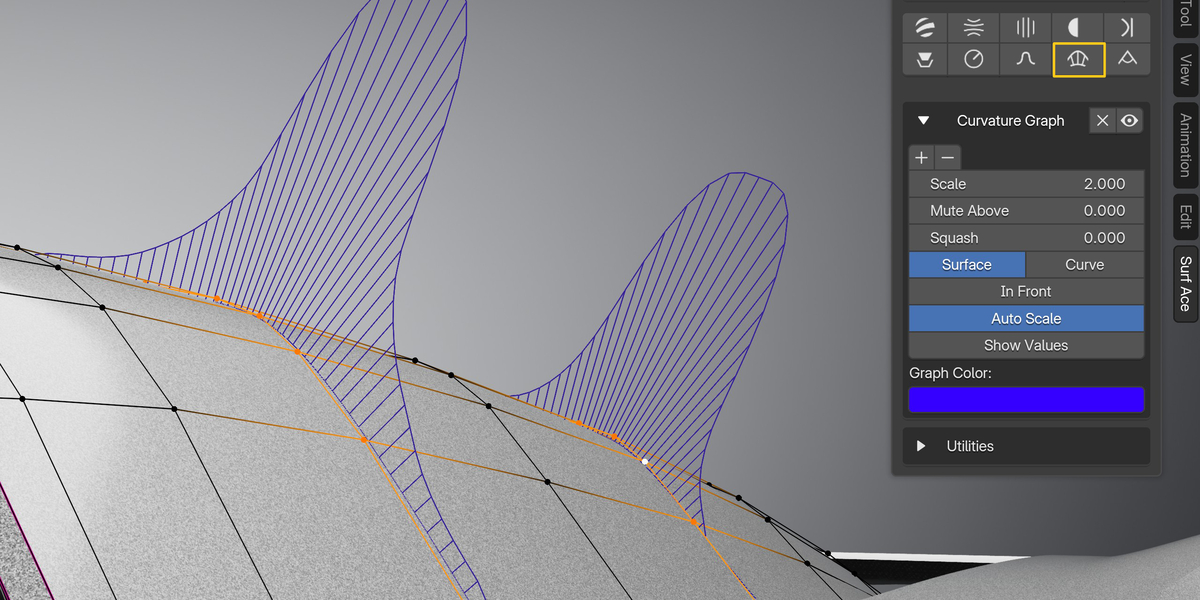

- Curvature Graph -

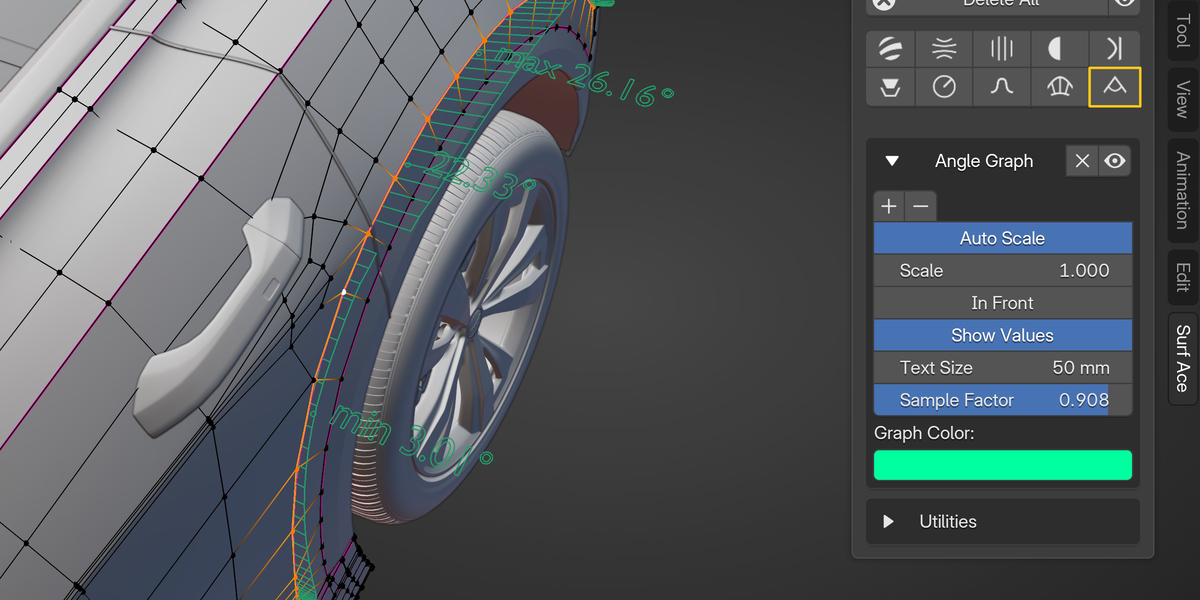

- Angle Graph-

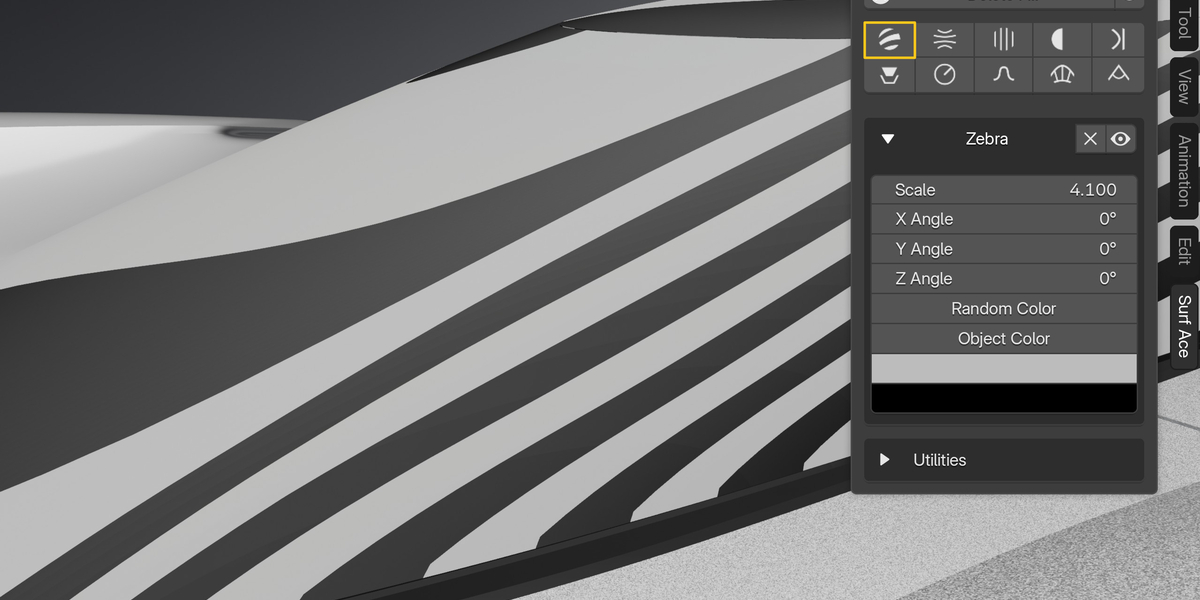

- Zebra -

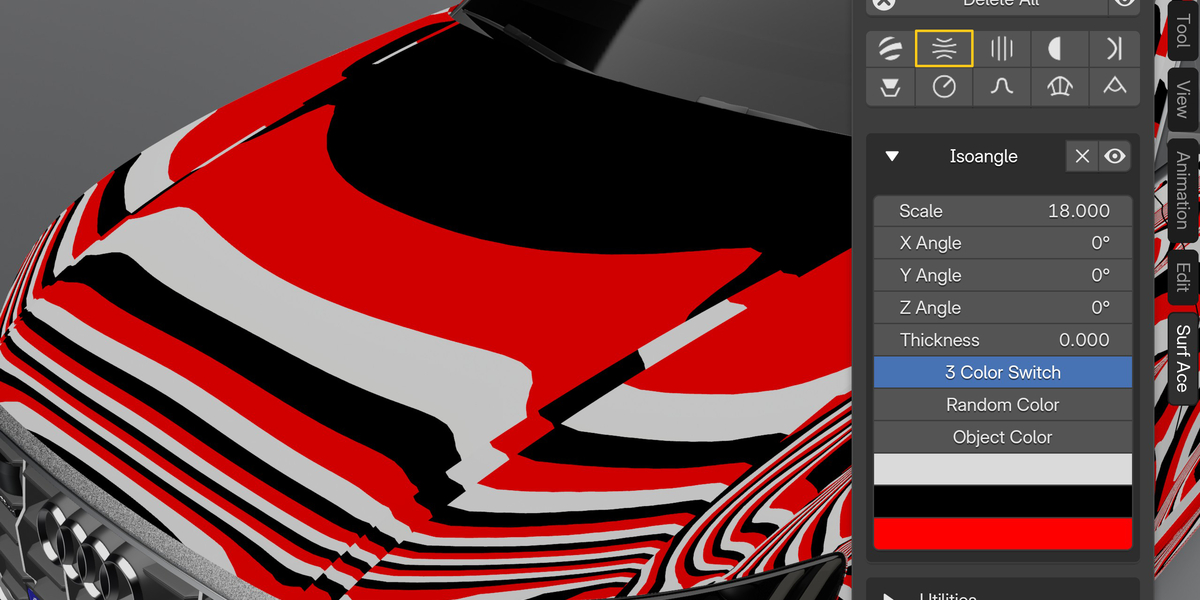

- Isoangle -
How it works
Key philosophy behind SurfAce Diagnostics is to utilize existing Blender tools as much as possible,
therefore all tools are standard Blender nodetrees,
you can use them on their own in vanilla Blender, they play well with asset browser.
For best efficiency, there is custom scripted UI for single-click workflow,
which is shipped as complete addon with assets included.
Diagnostic Shaders are added to your objects using geometry node modifiers,
so your existing material set-ups remains untouched.
so your existing material set-ups remains untouched.
Curvature Graphs are added as new mesh objects, with custom geometry nodes modifier.
Who is this for
If you know how to model a car for a game or automotive design studio.
If you love to design any kind of products and are passionate about surfacing.
For everyone who loves 3d modeling.
SurfAce Diagnostics aspire to be among the best in your toolbox.
Thank you! see you also at the Discord.
