Boolean Master

Unik Studio in Modeling


BLENDER 4.2+ALL-QUAD TOPOLOGYLITE + FULLV0.5.13

Boolean MasterBoolean-style cuts, clean quad topology

Place holes, slots, pockets and bosses with the mouse. Boolean Master rebuilds the surface around them as clean, all-quad topology with support loops — ready for Subdivision Surface, with no n-gons to clean up.

NEW IN V0.5.13

Logos as powerful as holes

Place a logo or a word with the mouse, repeat it in a row, a ring or a mirror, and cut it on curved surfaces too — with the same clean, all-quad topology.

Cutting a logo from an SVG curve and changing it with F9

  • ✓ Place Shape with the mouse — the outline follows the cursor over the mesh with a live HUD: Ctrl+Wheel scale, Alt+Wheel rotate, D cut type, click to cut.
  • ✓ Array and Symmetry for logos — Linear X / Y and Radial copies, mirrored on X / Y / Z, in the HUD (R, X Y Z) and in F9.
  • ✓ Curved surfaces — words and letters with holes cut in one clean area on cylinders and rounded panels.
  • ✓ Re-edit everywhere (0.6) — press F9 after a Subdivision Surface to change a Hole or a logo cut; move, rotate and scale a logo in F9; Double Support for logos.

Live Feature Demos

Recorded in Blender with the add-on itself. Everything below is in the full version; the Lite edition cuts Circle holes and lets you change their size.

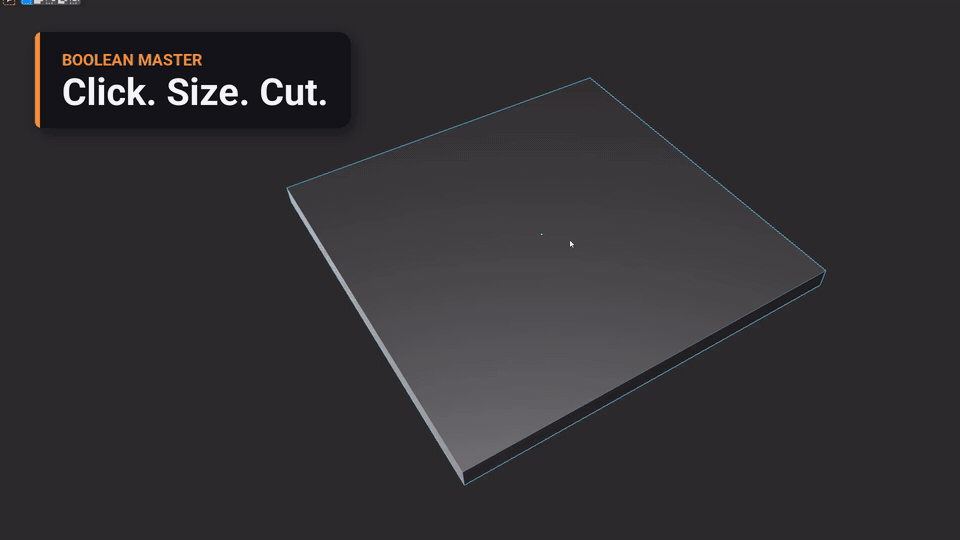

01 / PLACE & CUT

Click. Size. Cut.

Press Shift+Q, move over the surface and click the center. The live preview snaps to vertices, edge middles and face centers, Ctrl+Wheel sizes it and a second click cuts. The plain wheel still zooms the view.

Click. Size. Cut.

02 / F9 REDO FULL

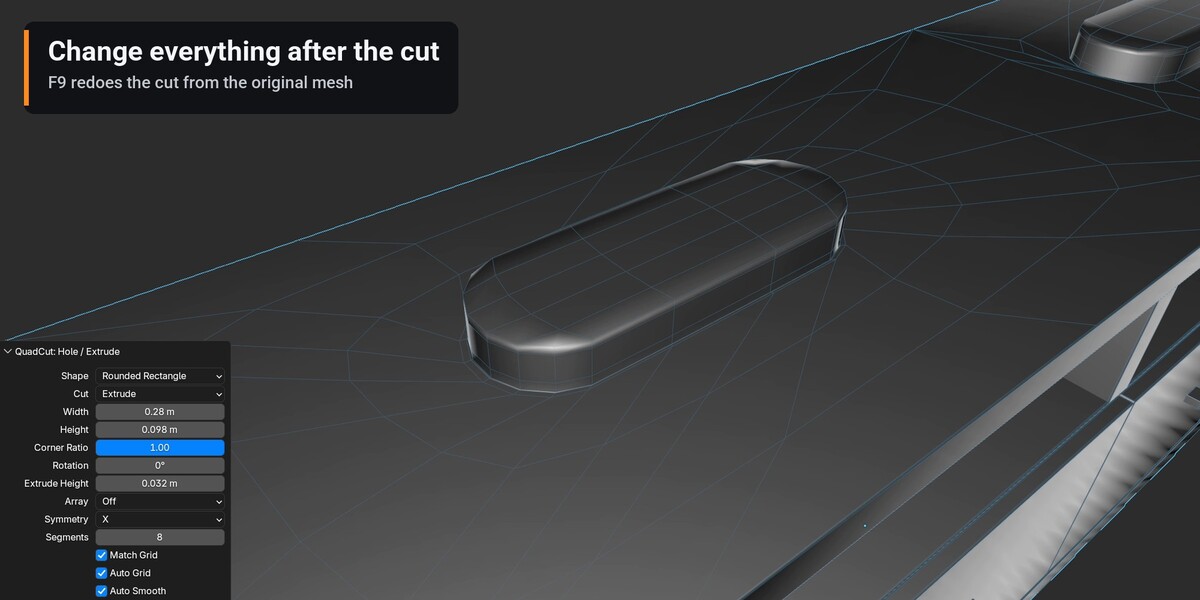

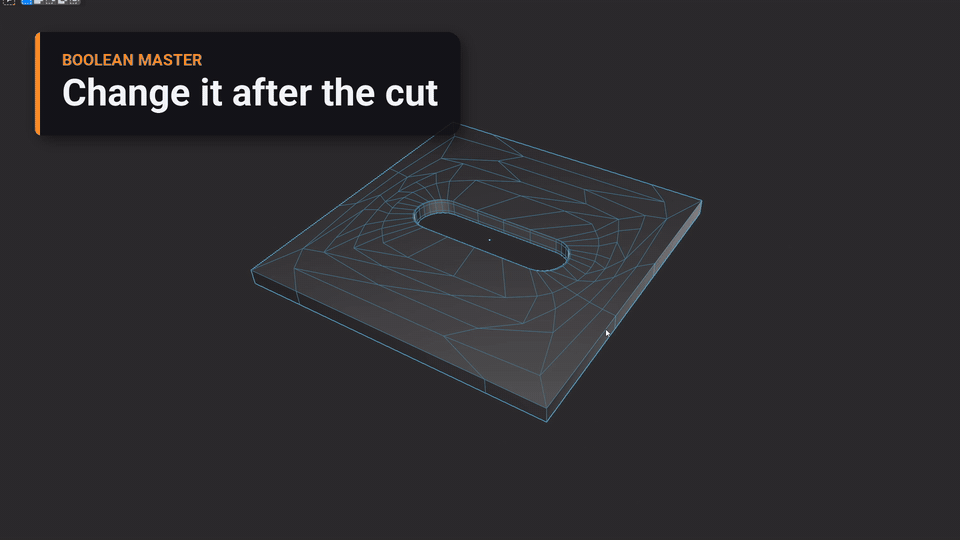

Change it after the cut

Press F9 to change the shape, size, segments, corner ratio, rotation or cut type. Every change is redone from the original mesh, so nothing piles up.

Change it after the cut

03 / DRAW FULL

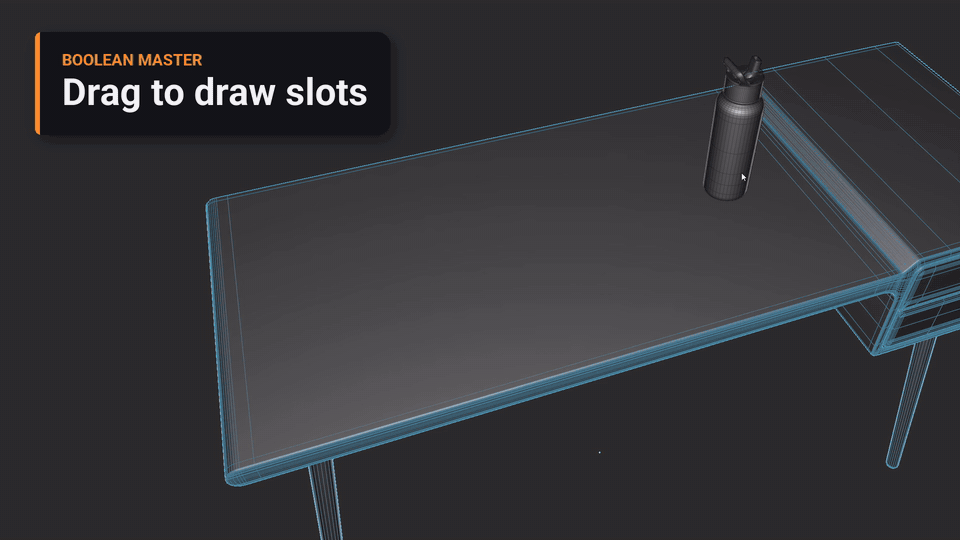

Drag to draw slots

Press, drag and release to draw a Rounded Rectangle or Rectangle from end to end. The angle snaps to 15° and the center to the nearest vertex or edge middle; Alt+Wheel rotates, hold Ctrl to place freely.

Drag to draw slots

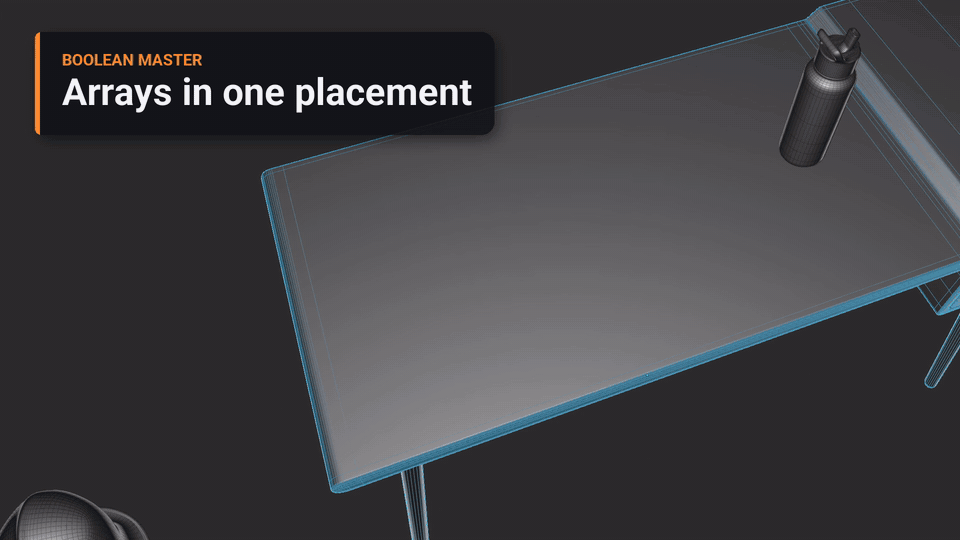

04 / ARRAY FULL

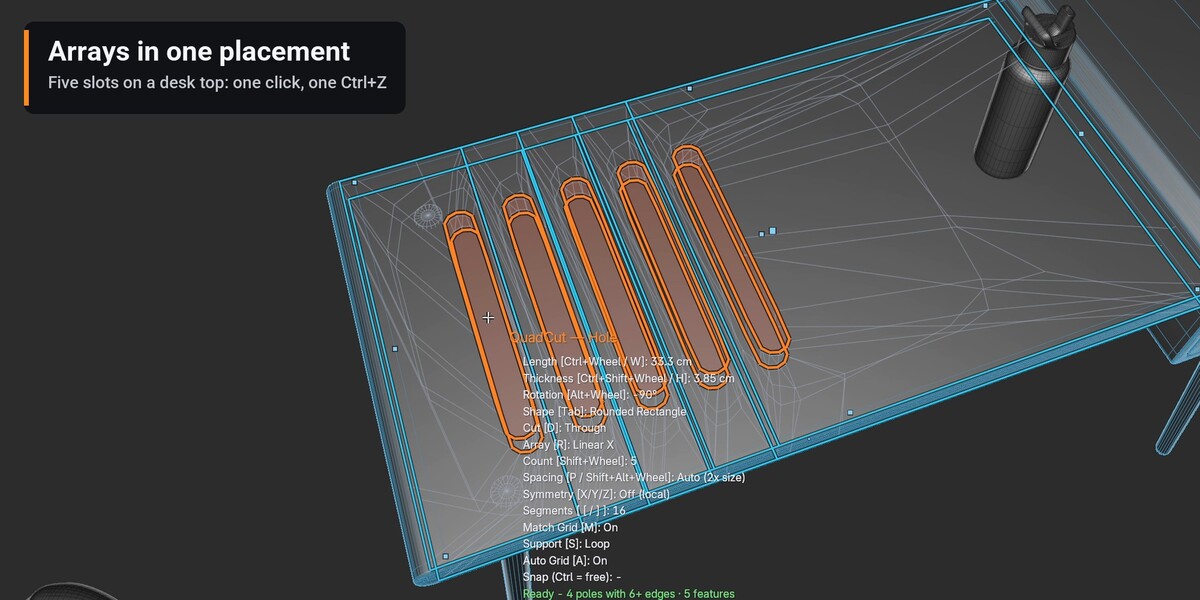

Arrays in one placement

R cycles Linear X, Linear Y and Radial. Shift+Wheel sets the count (2–32), P or Shift+Alt+Wheel the spacing. Every copy is previewed, and the whole row is cut — or refused — as one step that one Ctrl+Z undoes.

Arrays in one placement

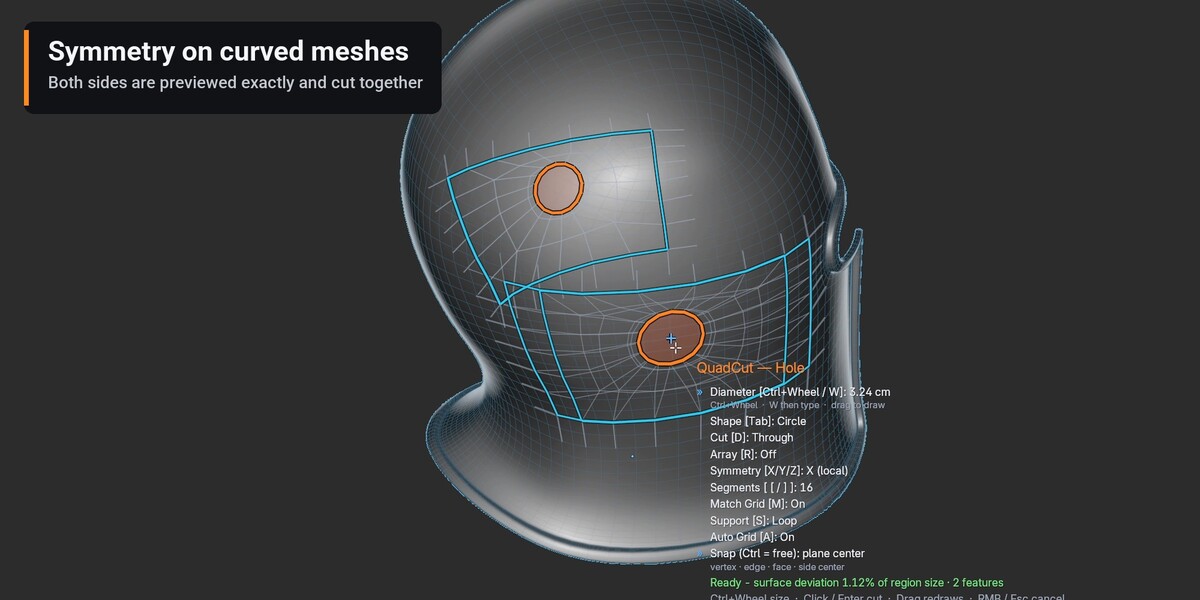

05 / SYMMETRY FULL

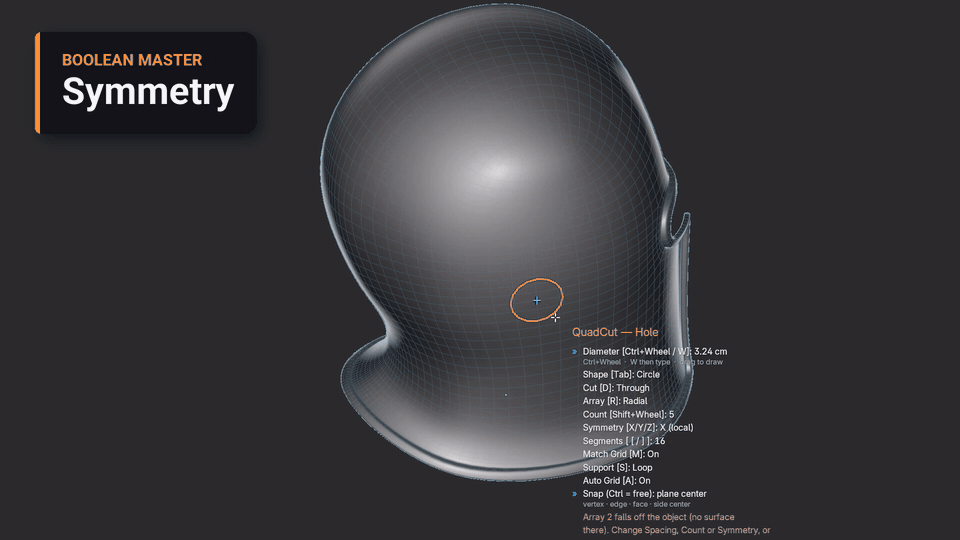

Mirror across the origin

X, Y or Z mirrors the hole across the object origin. Both sides are previewed exactly and cut together, also on curved meshes.

Mirror across the origin

06 / EXTRUDE FULL

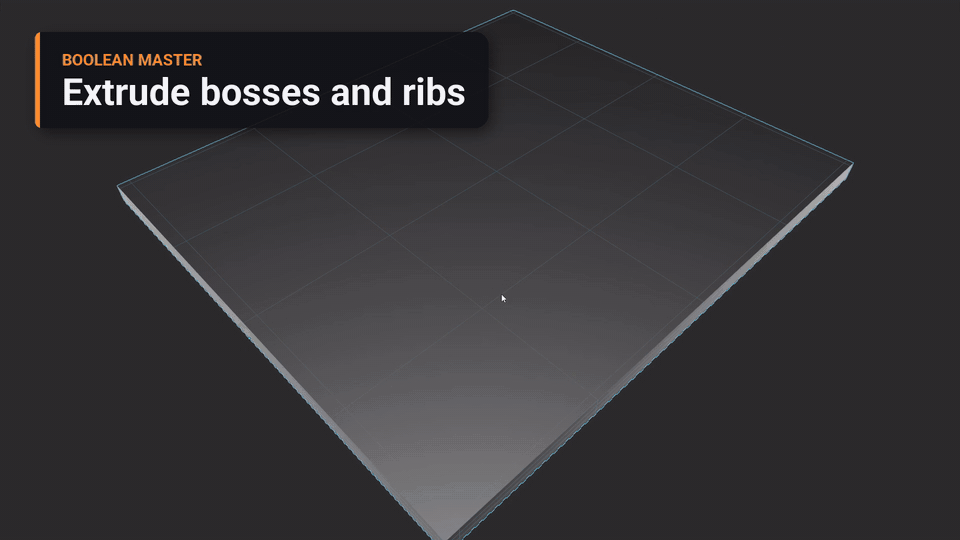

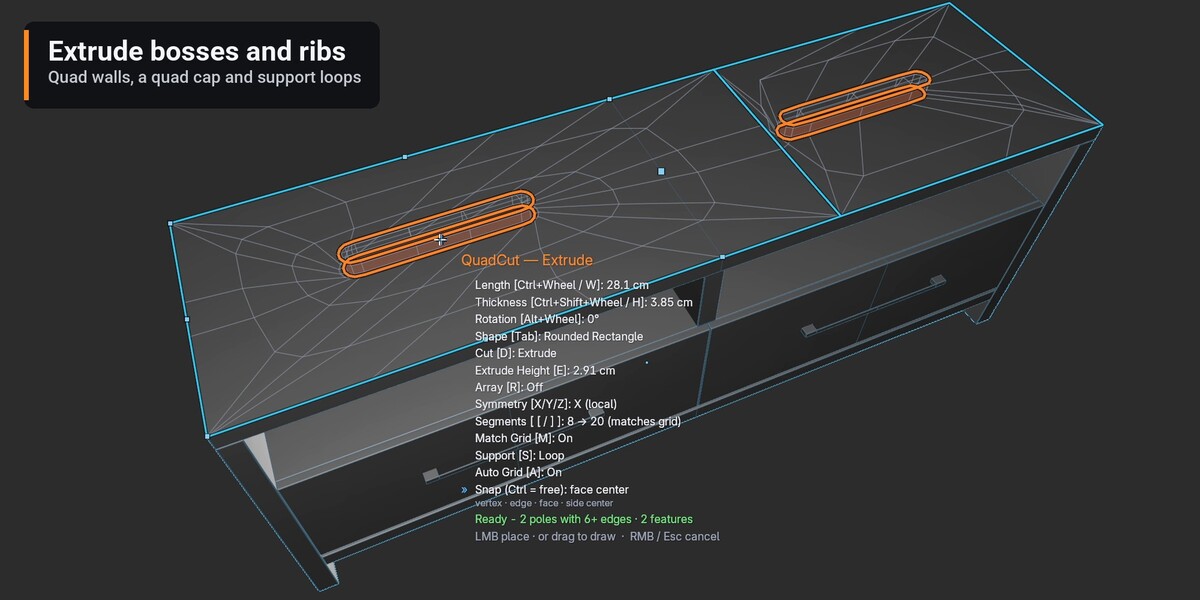

Bosses and ribs

D switches to Extrude: the outline rises along the surface normal and closes with quad walls and a quad cap. E types the height, Ctrl+Alt+Wheel changes it.

Bosses and ribs

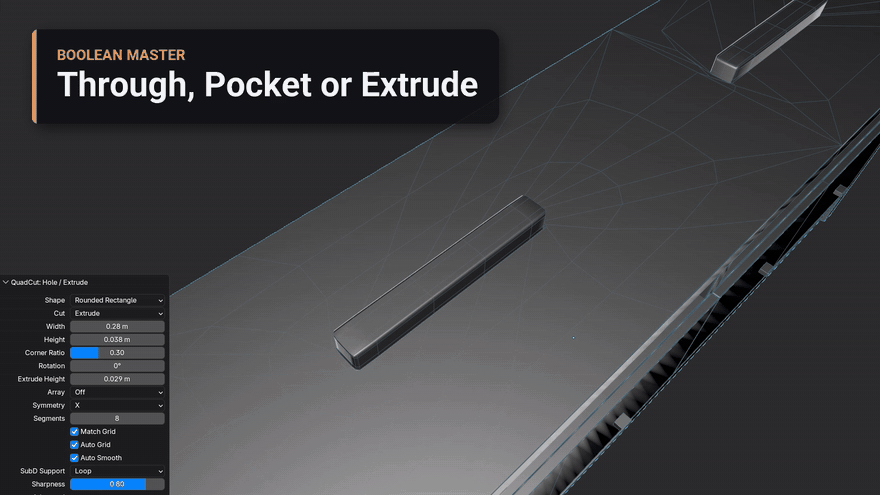

07 / CUT TYPES FULL

Through, Pocket or Extrude

Turn the same outline into a hole, a recess or a boss in F9, then tune depth, height and corner ratio until it fits.

Through, Pocket or Extrude

08 / REAL MESHES

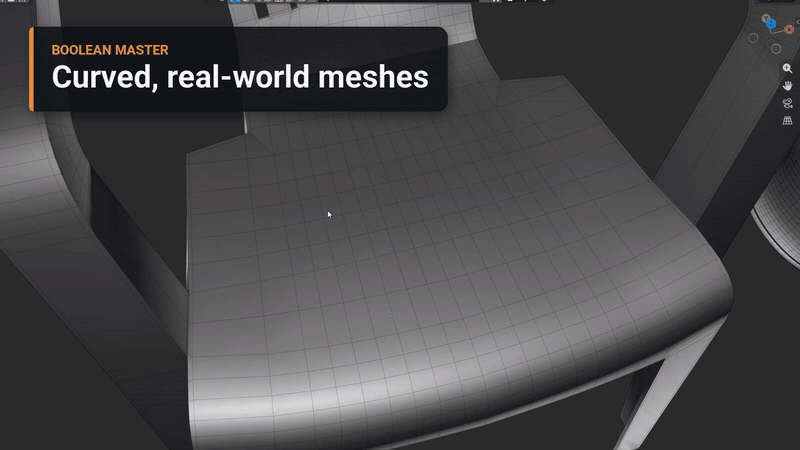

Curved, real-world meshes

The cut follows the surface. Quad grids are cut on the grid; strips, triangles, n-gons and areas near an earlier hole get a local quad patch, and the rest of the mesh stays untouched.

Curved, real-world meshes

09 / TOPOLOGY

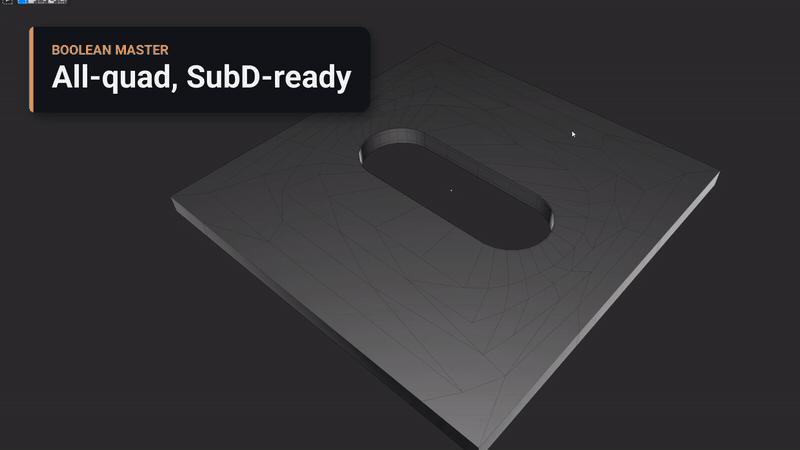

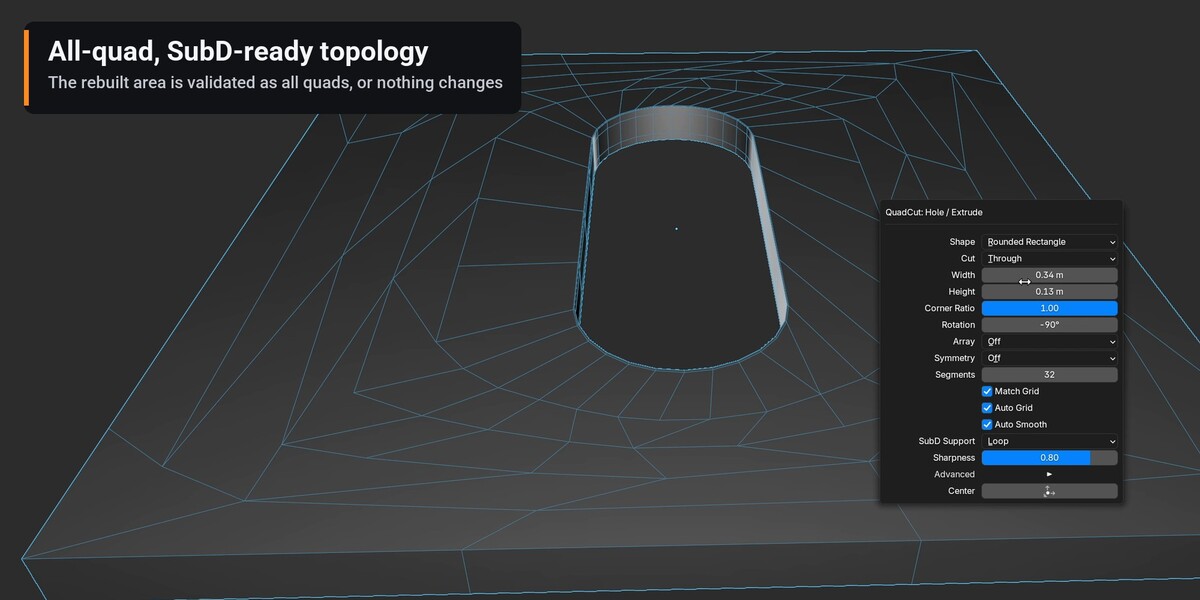

All-quad, SubD-ready

Every result is validated as all quads with support loops. Match Grid keeps dense surfaces flat, Auto Grid prepares a coarse Plane or Cube — and if a cut cannot be made cleanly, nothing changes.

All-quad, SubD-ready

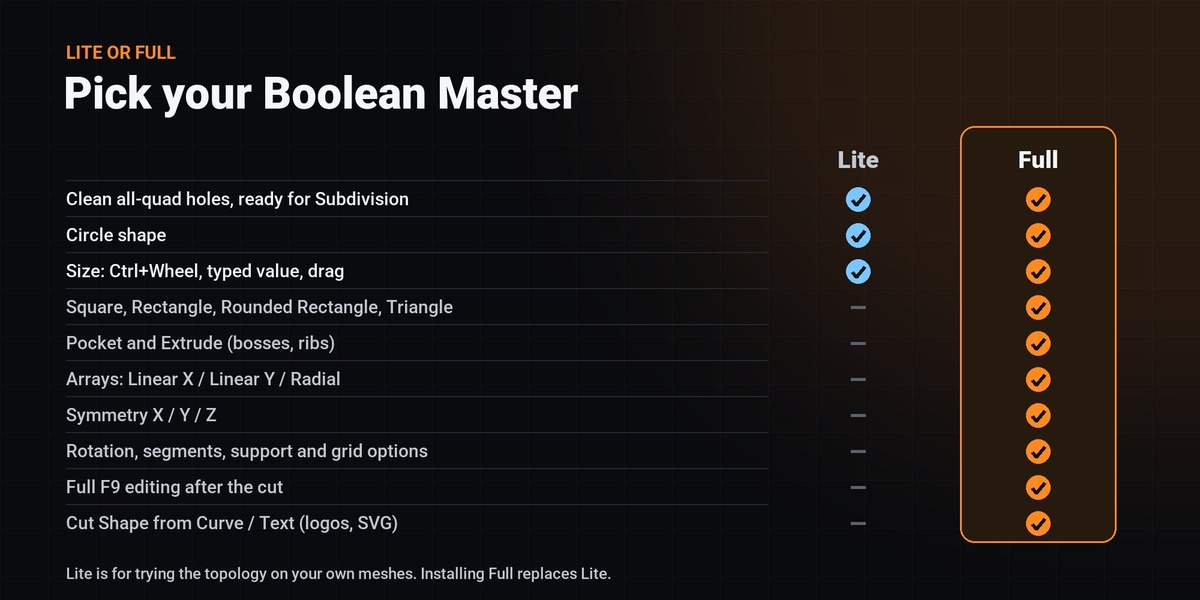

Lite or Full

Lite is for trying the topology on your own meshes. Upgrade any time — installing the full ZIP replaces Lite.

FEATURE Lite Full
Clean all-quad holes with support loops ✓ ✓
Circle shape, Through cut ✓ ✓
Size with Ctrl+Wheel, a typed value or a drag ✓ ✓
Square, Rectangle, Rounded Rectangle and Triangle — ✓
Pocket and Extrude (recesses, bosses, ribs) — ✓
Arrays: Linear X, Linear Y, Radial — ✓
Symmetry X / Y / Z — ✓
Rotation, segments, support and grid options — ✓
Full F9 editing after the cut — ✓
F9 Re-edit after later steps (Subdivision Surface, modifiers) — ✓
Cut Shape from Curve / Text (logos, SVG) — ✓
Place logos with the mouse, Array and Symmetry for logos — ✓

What Boolean Master Adds

A focused hard-surface tool: cut, keep the topology clean, move on.

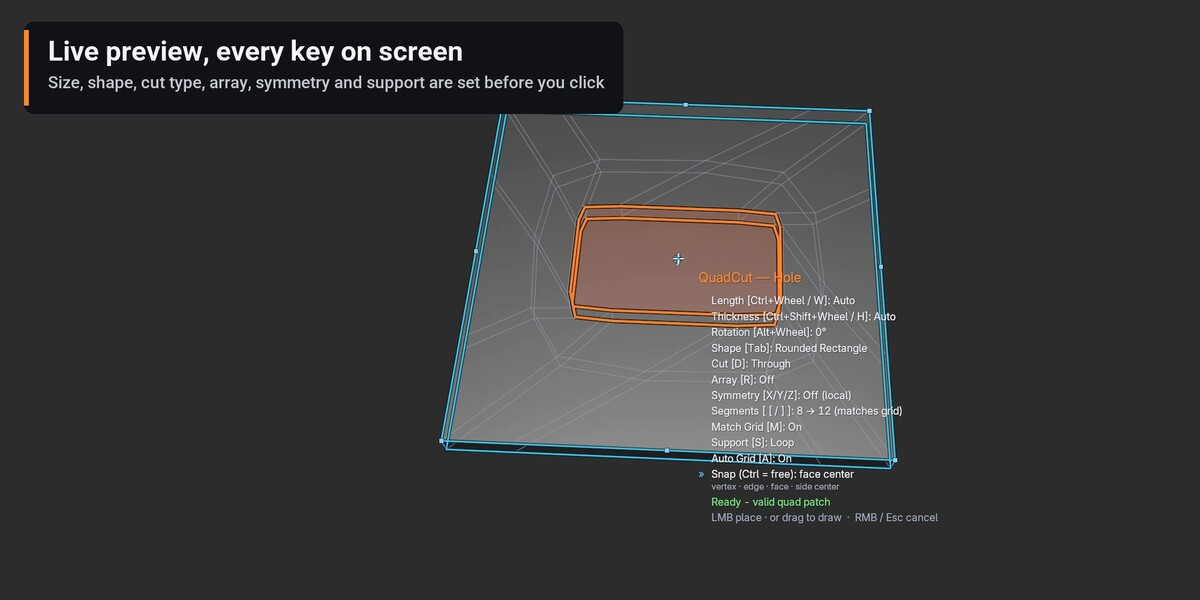

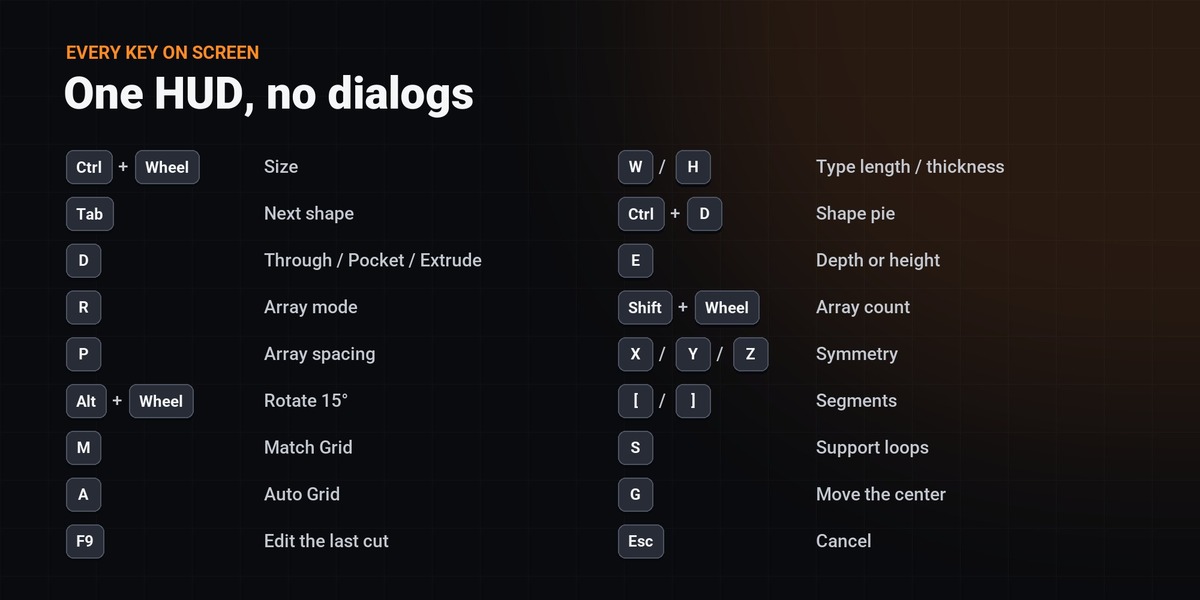

1Live placement HUD

Every setting is listed next to the cursor with its key — no dialogs.

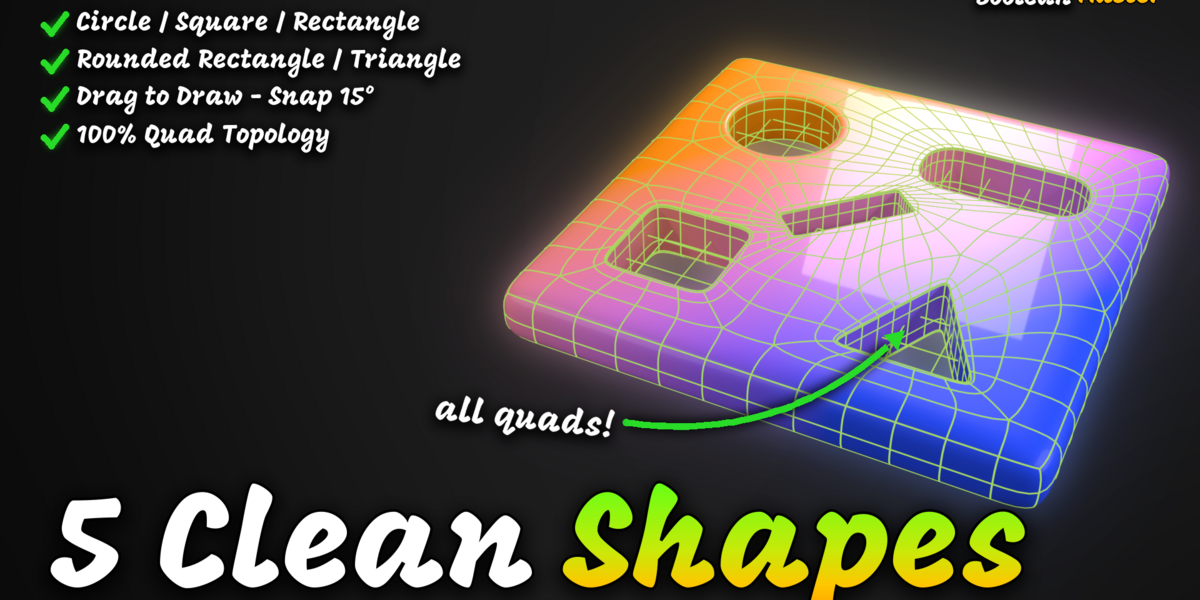

2Five shapes

Circle, Square, Rectangle, Rounded Rectangle and Triangle, plus drag-drawn slots.

3Three cut types

Through holes, Pocket recesses and Extrude bosses with quad walls.

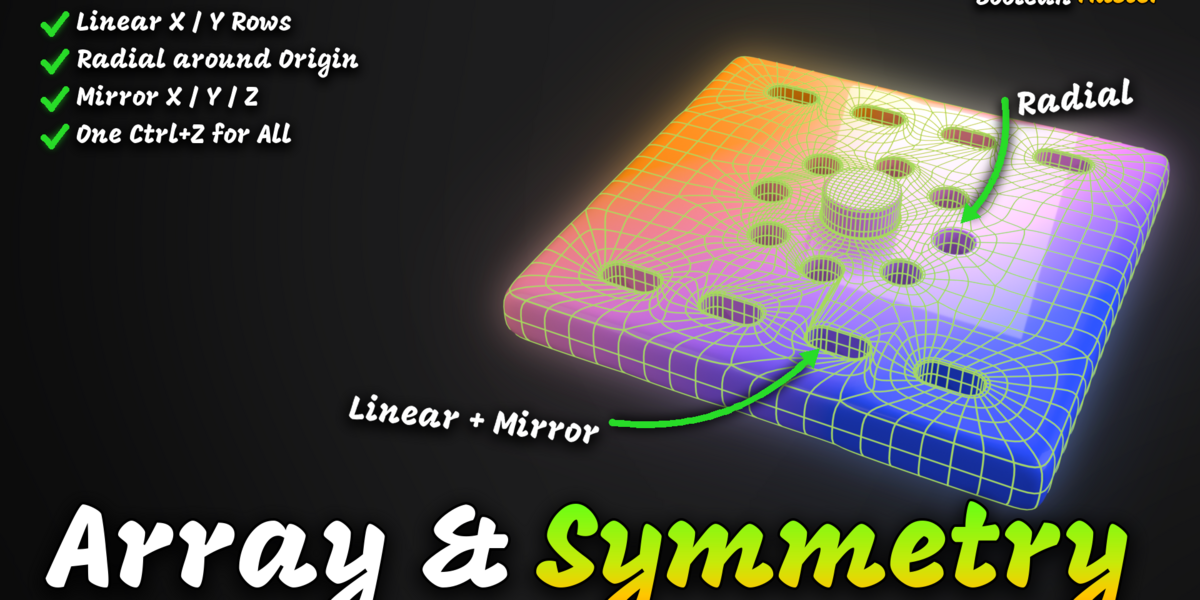

4Arrays and Symmetry

Linear X / Y and Radial copies, mirrored on X / Y / Z, in one placement.

5F9 redo and Re-edit

Change any setting after the cut — even later, after adding a Subdivision Surface; it is recomputed from the original mesh.

6SubD support

Support loops or crease, Match Grid, Auto Grid and Auto Smooth.

7Custom outlines

Cut a closed Curve or Text object — a logo, a letter, an imported SVG — placed with the mouse, repeated in an Array or mirrored, on flat or curved surfaces.

8Safe by design

All-quad validation on every cut; refused cuts leave the mesh unchanged.

Workflow

1Select a meshObject Mode or Edit Mode. The default Plane and Cube work too.
2Press Shift+QOr At Cursor / Active Face in the sidebar (N > Boolean Master).
3Shape itCtrl+Wheel for size, Tab for the shape, D for Through / Pocket / Extrude.
4Click to cutOr press Enter. Drag to draw a slot. Esc or right-click cancels.
5RefineF9 edits the cut; one Ctrl+Z undoes it.

Requirements

  • ✓Blender: Blender 4.2 or newer, installed as an Extension. Tested on Blender 4.5 LTS and 5.2.
  • ✓Platform: Tested on Windows 11. Pure Python — no external dependencies, no internet access.
  • ✓Mesh objects: Object Mode and Edit Mode (the active face is used in Edit Mode).
  • ✓Clean setup: No Blender settings are changed; keys are added only when they do not conflict.
  • ✓Install target: boolean_master-0.5.13.zip (or boolean_master_lite-0.5.13.zip) via Edit > Preferences > Get Extensions > Install from Disk, or drag and drop the ZIP onto the Blender window.

Limitations

  • 1UVs: UVs inside the rebuilt area are not preserved.
  • 2Object scale: Apply non-uniform object scale for exact sizes.
  • 3Custom outlines: Letters with holes (O, A, B, @), narrow mouths (e, a) and close letters are cut on flat areas and on surfaces turning up to about 60° under the shape (cylinders, rounded panels). Their live preview shows the outline; the topology is checked when you click.
  • 4Earlier patches: Cutting into a previous patch can rebuild its nearby support loops; long-strip rows can be slightly oblique.
  • 5F9 Re-edit: Re-edit reaches the last cut of a mesh, as long as the mesh itself was not edited afterwards (modifiers are fine). It is not available after Symmetrize Hole or for older cuts yet.
  • 6Not included yet: Booleans between two objects and Bevel are planned. Boolean Master cuts its own shapes and outlines.

Roadmap

What comes next for Boolean Master. Updates are included for buyers of the full version; the order may change with your feedback.

v0.5.xRELEASED

Logos, curves and text

  • Cut Shape from Curve/Text: SVG logos, Text objects, tubes and rings
  • Letters with holes (O, A, B, 8, @), close letters and narrow mouths
  • F9 Re-edit of a Curve/Text cut after SubD or other steps
v0.6RELEASED

Re-edit everywhere

  • F9 Re-edit for Hole cuts too, after adding a Subdivision Surface or other modifiers
  • Move, rotate and scale a logo cut in F9 (offset X/Y, rotation, scale)
  • Double support loops for custom shapes
v0.7RELEASED

Logos as powerful as holes

  • Array and Symmetry for logos and text
  • Live preview HUD while placing a Curve/Text cut
  • Whole-logo cuts on curved surfaces (cylinders, rounded panels)
v0.8NEXT

Bevel tools

  • Bevel, Rebevel and Unbevel edges with clean quad support
  • Stronger rounded rectangles straight from the HUD (corner ratio key)
v0.9PLANNED

History and Restore

  • Re-edit any older cut, not only the last one
  • Restore the original surface of a cut
  • Purge stored cut data to keep .blend files small
v1.0PLANNED

Boolean and Pattern

  • Cut with another mesh object, keeping all-quad topology
  • Pattern fills: grids of holes and slots across a surface
  • Full video tutorials and expanded documentation

Cut clean. Stay in quads.

Installation, every key, F9 settings and troubleshooting are in the Documentation tab.
